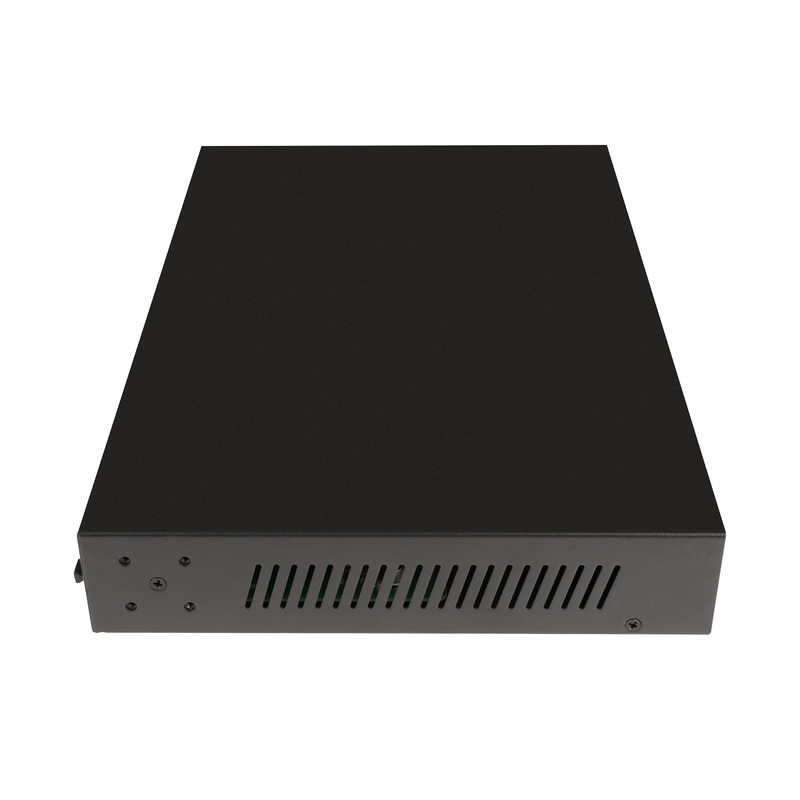

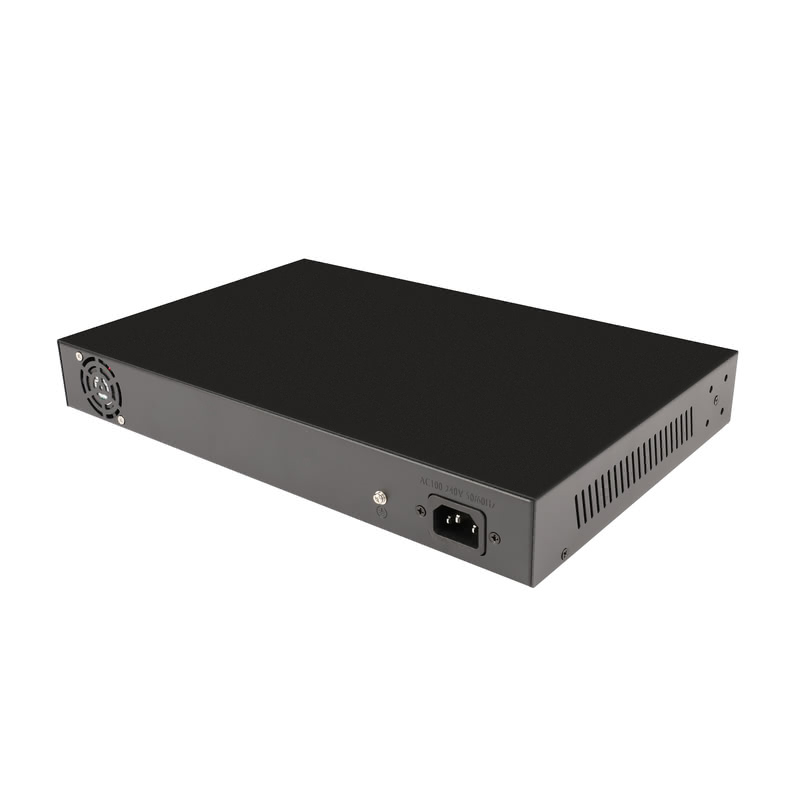

Model: PS11602G

16 Port Gigabit PoE+ Switch with 2 Uplink Ports (300W)

features

Datasheet

Factory price

global shipping

customer service

quality assurance

specification

Interfaces
Model
PS11602G
Fixed Port
16*10/100/1000Base-T/TX PoE ports (Data/Power)
2*10/100/1000Base-T/TX RJ45 ports (Data)

PoE
PoE Port
Port 1-16 support PoE @ IEEE802.3af/at
Feature
With the Dial code switch, support port priority by default.
E: AI Extend 300 meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters;
V: Turn on, 1-16 Port support each port Isolation & VLAN;
D: Turn on, 1-16 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem & reduce after-sale.
Fan
Non-Fan, silent working status can satisfy more users with different requirement.
Network Protocol
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X;
IEEE802.3u 100Base-FX;
IEEE802.3x.
PoE Standard
IEEE802.3af/at
Ethernet Port Feature
10/100/1000Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
Fiber Port Feature
Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC)
Forwarding Mode
Store and Forward

Switch Property
Switching Capacity
40Gbps (non-blocking)
Forwarding Rate
29.76Mpps
MAC
8K
Buffer Memory
4M
Twisted Pair Transmission
10BASE-T: Cat5 UTP (≤300 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter)
1000BASE-T: Cat5 or later UTP (≤100 meter)
Power Supply Pin
Default 1/2(+), 3/6(-)
MAX / AVERAGE Power Per Port
30W/15.4W
Total PWR / Input Voltage
300W (100-240V)
Power Consumption
Standby:<5W
Full load:<300W

Physical Characteristics
LED Indicator
Power indicator: PWR (Green)
Network indicator: 1-16(Link/Act) (Green),17-18(Link/Act) (Green)
Power Supply
Built in switching power supply, AC100~240V 50-60Hz
Operation TEMP / Humidity
-20~+55°C:5%~90% RH non condensing
Storage TEMP / Humidity
-40~+75°C
5%~95% RH non condensing
Dimension
330*220*44mm
Net /Gross Weight
<3kg / <4kg
Installation Method
desktop type, wall mounted, 19-inch 1U cabinet installation
Protection
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-5(Lightning protection/Surge): Power: CM±4kV/DM±2kV; Port: ±6kV
Protection Level
IP30
