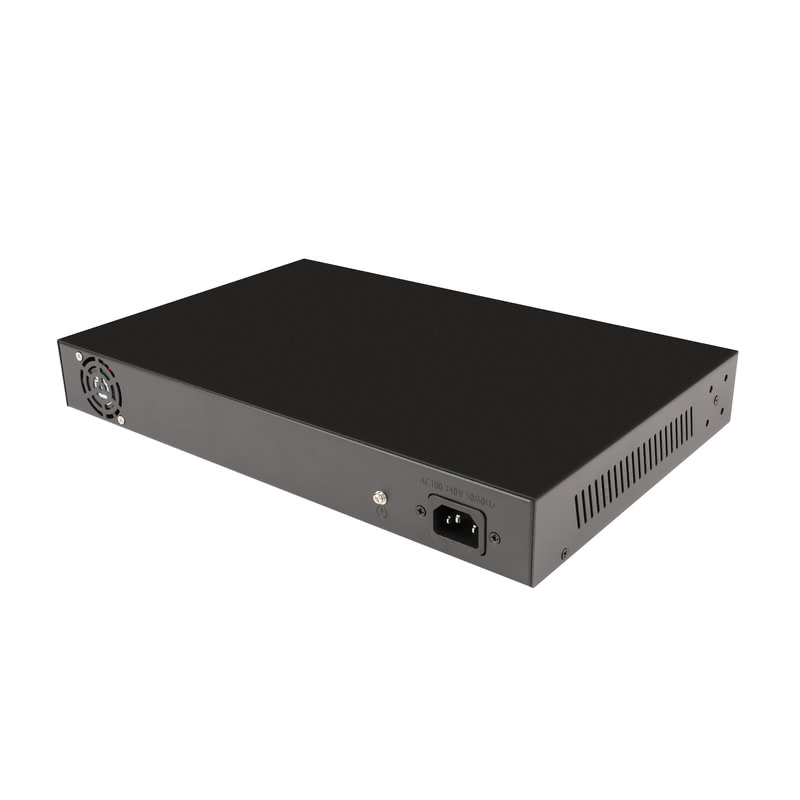

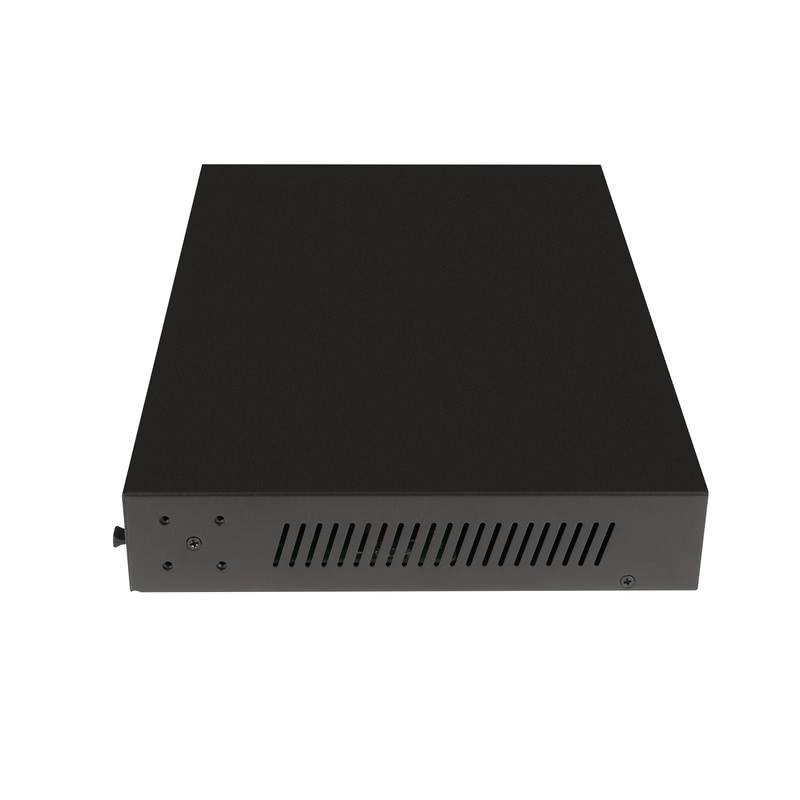

Model: PS11602FG

16 Port Gigabit PoE+ Switch with 2 Uplinks & 2 SFP (300W)

features

  • 16GE+2GE+2GF Full Gigabit PoE Switch
  • Ports 1–16 support IEEE 802.3af/at PoE, up to 30W per port
  • Supports smart watchdog, VLAN, and Extend mode
  • Internal 300W power supply included
  • Supports 10/100/1000Mbps auto-negotiation, auto MDI/MDI-X
  • Wire-speed forwarding on all ports
  • Supports desktop, wall-mounted, and rack-mount installation
Catalog:
Send Inquiry By Emali: [email protected]

Datasheet

Download View

Factory price

global shipping

customer service

quality assurance

specification

  • Interfaces
  • Model
    PS11602FG
  • Protocol

    IEEE802.3 10Base-T

    IEEE802.3u 100Base-TX

    IEEE802.3ab 1000Base-T

    IEEE802.1W Spanning Tree

    IEEE 802.3x flow control

  • Fiber Port Characteristic

    Connector Type: SFP slot

    Transmission rate: 1.25Gbps

    Transmission distance: Multi-mode 550m/2km; Single-mode 2/20/40/60/80/100km

    Wavelength: Multi-mode 850nm/1310nm; Single-mode 1310nm/1550nm/1490nm

  • Ethernet Port Characteristic

    Connector Type: 2×4 RJ45, 1×1 RJ45

    Transmission rate: 10/100/1000Mbps auto-negotiate

    Transmission distance: 10Base-T ≤250m (CAT3/4/5 UTP), 100Base-TX ≤100m (CAT3/4/5 UTP), 1000Base-T ≤100m (CAT3/4/5 UTP)

  • Switch Performance
  • Forward Method
    Store-and-forward (full wire-speed)
  • Transmission Mode
    Half/Full duplex adaptive
  • MAC Address Table
    4K
  • Case Space
    1.5Mb
  • Jumbo Frames
    9216 bytes
  • Packet Forwarding Rate
    28.272Mpps @ 64 bytes
  • Bandwidth
    38Gbps (non-blocking)
  • LED & Power
  • LED Indicator

    Power: Green (PWR)

    Link/Act: Yellow, 1 per ethernet/fiber port

  • Power Parameters

    Input voltage: AC100~240V, 50Hz

    Power consumption: Standby ≤5W, Full ≤300W

    PoE pin: 1/2+, 3/6-

    Port max power: ≤25.4W

  • Environment & Physical
  • Operating Temperature
    -20℃~60℃
  • Storage Temperature
    -40℃~85℃
  • Operating Humidity
    5%~95% non-condensing
  • Heat Dissipation
    Natural
  • Size
    305×220×44mm
  • Weight
    Net: 2.1kg, Gross: 2.3kg
