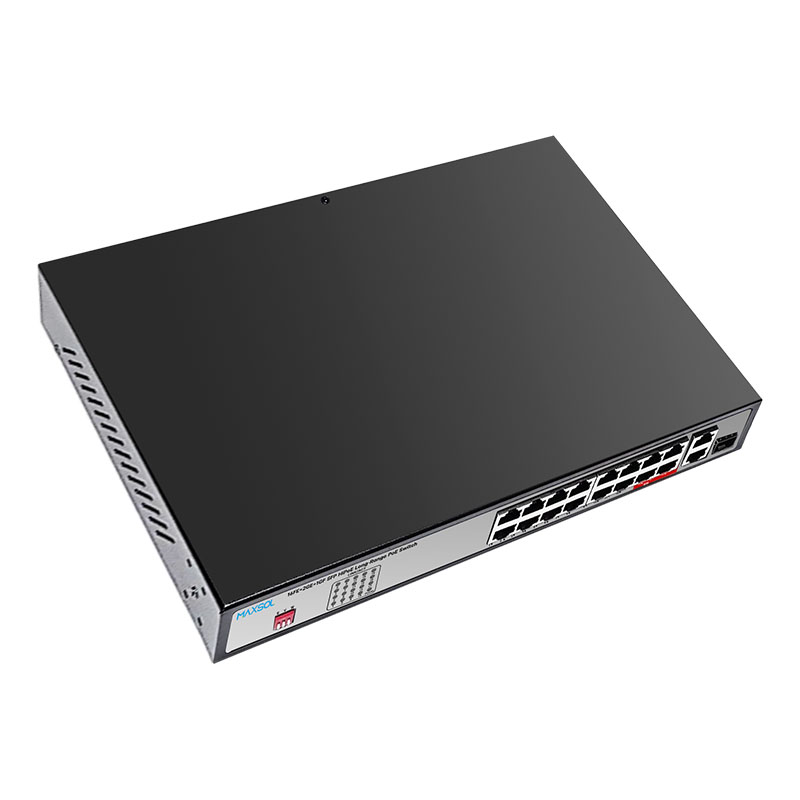

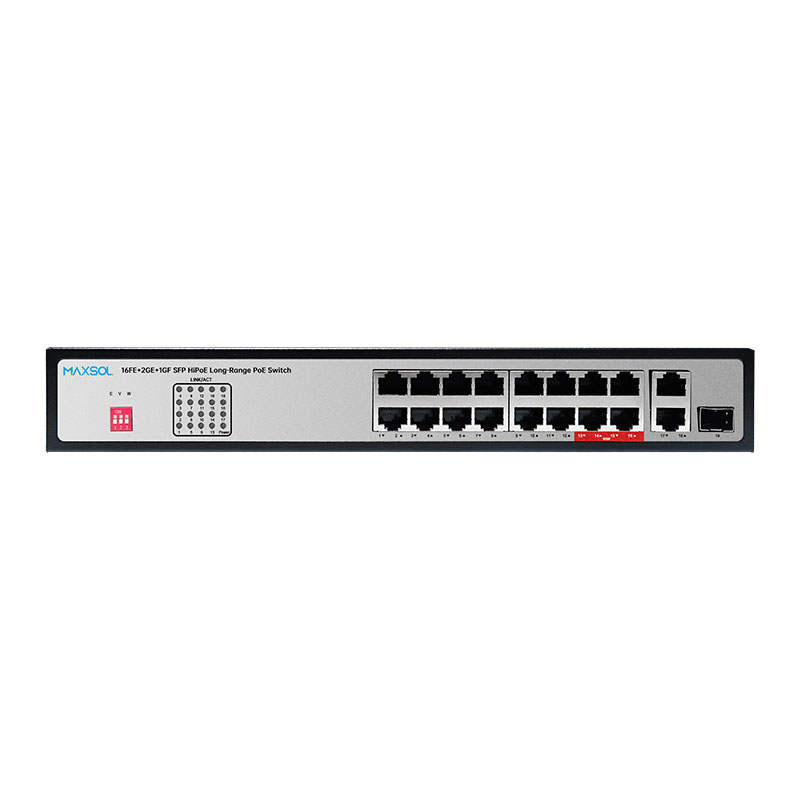

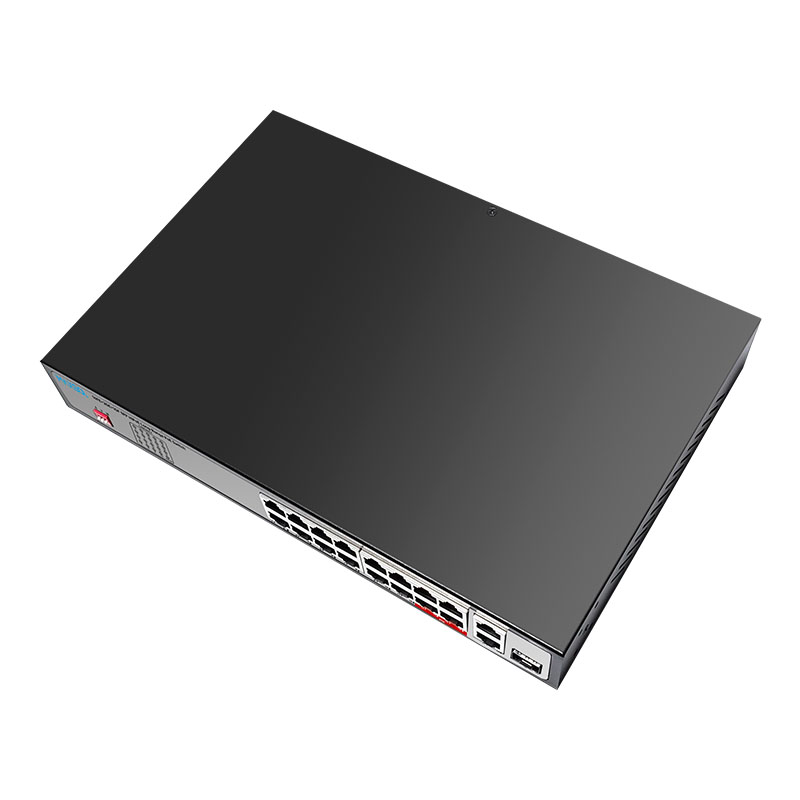

16FE+2GE+1GF Uplink HiPoE 300M 200W Long Range PoE Switch

PS11602FE

16*10/100Base-T/TX PoE ports (Data/Power)

2*10/100/1000Base-T/TX RJ45 ports (Data)

1*100/1000Base-X uplink SFP fiber slot (Data)

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000base-X;

IEEE802.3x.

10/100/1000Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive

Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC)

Store and Forward

Port 1-16 support PoE @ IEEE802.3af/at

With the Dial code switch, support port priority by default.

E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters;

V: Turn on, 1-16 Port support each port Isolation & VLAN;

W: Turn on, 1-16 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.

Non-Fan, silent working status can satisfy more users with different requirement.

IEEE802.3af/at

9.2Gbps (non-blocking)

6.84Mpps

8K

4M

10BASE-T: Cat5 UTP (≤300 meter)

100BASE-TX: Cat5 or later UTP (≤100 meter)

1000BASE-TX: Cat5 or later UTP (≤100 meter)

Default 1/2(+), 3/6(-)

Port 1-14 30W, port 15-16 60W

200W

Standby:<5W

Full load:<200W

Power indicator: PWR (Green);

Network indicator: 1-16(Link/Act)/ (Green),17-19(Link/Act)/ (Green)

Build-in power adaptor AC100~240V 50-60Hz,200W

-20~+55°C:5%~90% RH non condensing

-40~+75°C;5%~95% RH non condensing

310*205*44mm

CE, FCC, RoHS

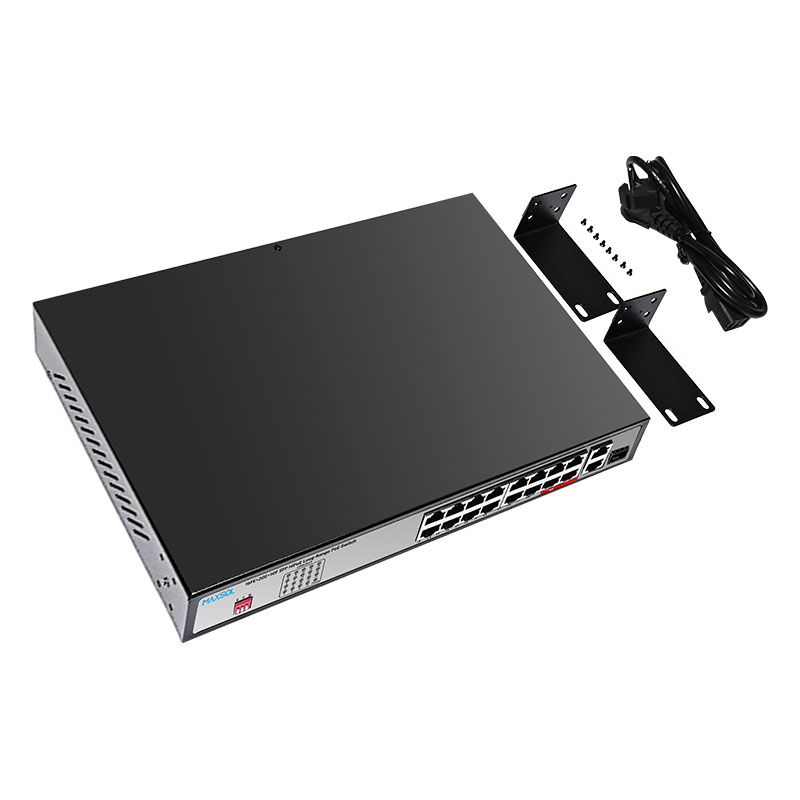

1 pcs

1 pcs

1 pcs

1 pcs
