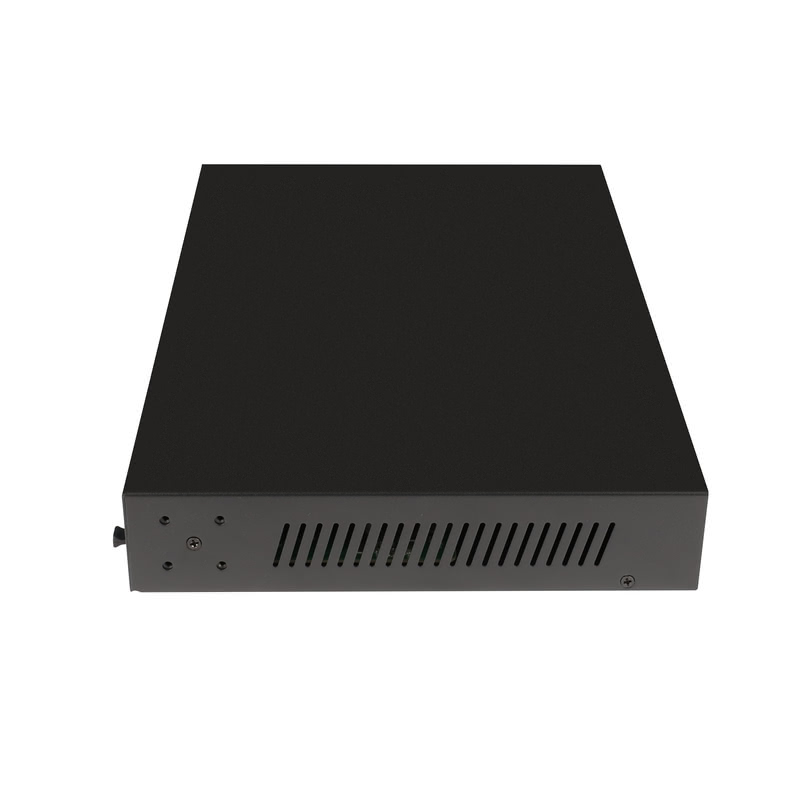

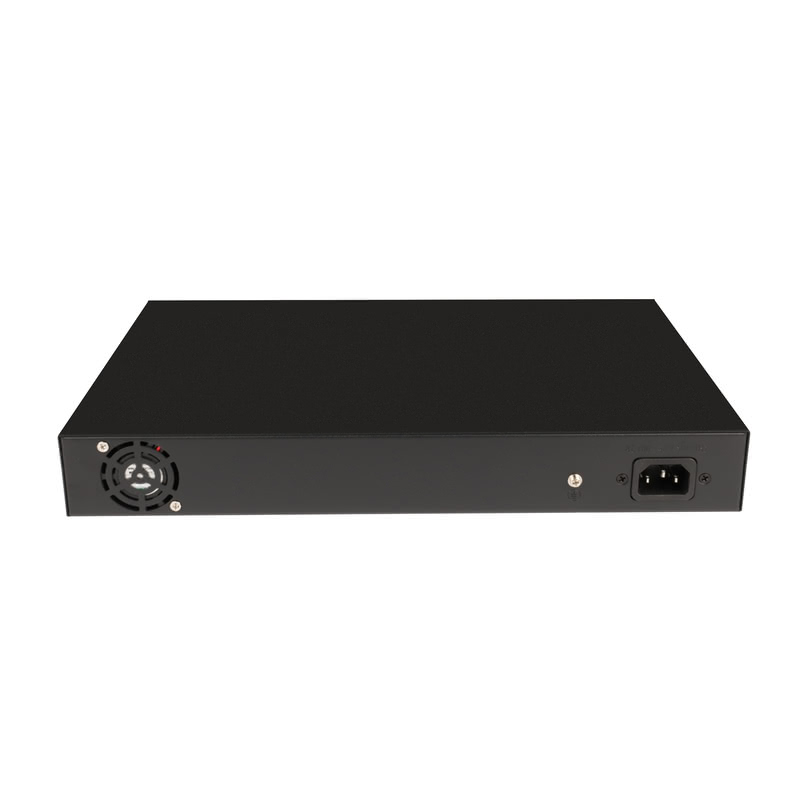

Model: PS12402FG

24 Port Gigabit PoE+ Switch with 2 Uplinks & 1 SFP (300W)

features

  • 24GE+2GE+1GF Full Gigabit PoE Switch
  • Ports 1–24 support IEEE 802.3af/at PoE, up to 30W per port
  • Supports smart watchdog, VLAN, and Extend mode
  • Internal 300W power supply included
  • Supports 10/100/1000Mbps auto-negotiation, auto MDI/MDI-X
  • Wire-speed forwarding on all ports
  • Supports desktop, wall-mounted, and rack-mount installation
Catalog:
Send Inquiry By Emali: [email protected]

Datasheet

Download View

Factory price

global shipping

customer service

quality assurance

specification

  • Interfaces
  • Model
    PS12402FG
  • Fixed Ports

    24 × 10/100/1000Base-T/TX PoE ports (Data/Power)

    2 × 10/100/1000Base-T/TX RJ45 ports (Data)

    1 × 1000Base-X uplink SFP fiber slot (Data)

  • PoE
  • PoE Ports
    Ports 1–24 support IEEE802.3af/at
  • Feature

    Dial code switch supports port priority by default

    E: AI Extend 300m, single port auto speed (limit 10Mbps), others maintain 100M/1000M within 100m

    V: Ports 1–24 support isolation & VLAN

    D: Ports 1–24 support AI-PoE self-healing (PoE Watchdog), automatic camera issue resolution

  • Fan
    Non-fan, silent operation
  • Network Protocol

    IEEE802.3 10BASE-T / IEEE802.3i 10Base-T

    IEEE802.3u 100Base-TX / IEEE802.3ab 1000Base-T

    IEEE802.3z 1000Base-X / IEEE802.3u 100Base-FX / IEEE802.3x

  • PoE Standard
    IEEE802.3af/at
  • Ethernet Port Feature
    10/100/1000Base-T(X) auto-detect, full/half duplex, MDI/MDI-X adaptive
  • Fiber Port Feature
    Gigabit SFP (module not included, single/multi-mode, single/dual fiber, LC)
  • Switch Performance
  • Switching Capacity
    54Gbps (non-blocking)
  • Forwarding Rate
    40.18Mpps
  • MAC
    8K
  • Buffer Memory
    4M
  • Twisted Pair Transmission

    10BASE-T: Cat5 UTP ≤300m

    100BASE-TX: Cat5 or higher ≤100m

    1000BASE-TX: Cat5 or higher ≤100m

  • Power Supply Pin
    1/2(+), 3/6(-)
  • Max/Average Power Per Port
    30W / 15.4W
  • Total Power / Input Voltage
    300W (100–240V)
  • Power Consumption

    Standby ≤5W

    Full Load ≤300W

  • Certification & Package
  • LED Indicator

    Power: Green (PWR)

    Network: Ports 1–24 Link/Act Green, Ports 25–27 Link/Act Green

  • Power Supply
    Built-in switching AC100–240V 50–60Hz
  • Operating Temp/Humidity
    -20~+55°C, 5~90% RH non-condensing
  • Storage Temp/Humidity
    -40~+75°C, 5~95% RH non-condensing
  • Dimension
    330×220×44mm
  • Net/Gross Weight
    Net 3kg / Gross 4kg
  • Installation
    Desktop, wall-mounted, 19-inch 1U cabinet
  • Protection

    ESD: ±8kV contact, ±15kV air

    Surge: Power CM±4kV/DM±2kV; Port ±6kV

  • Protection Level
    IP30
  • Certification
    CE, FCC, RoHS
  • Package Contents

    Switch ×1

    Power cord ×1

    Hanging ears ×1

    Quick installation guide ×1
