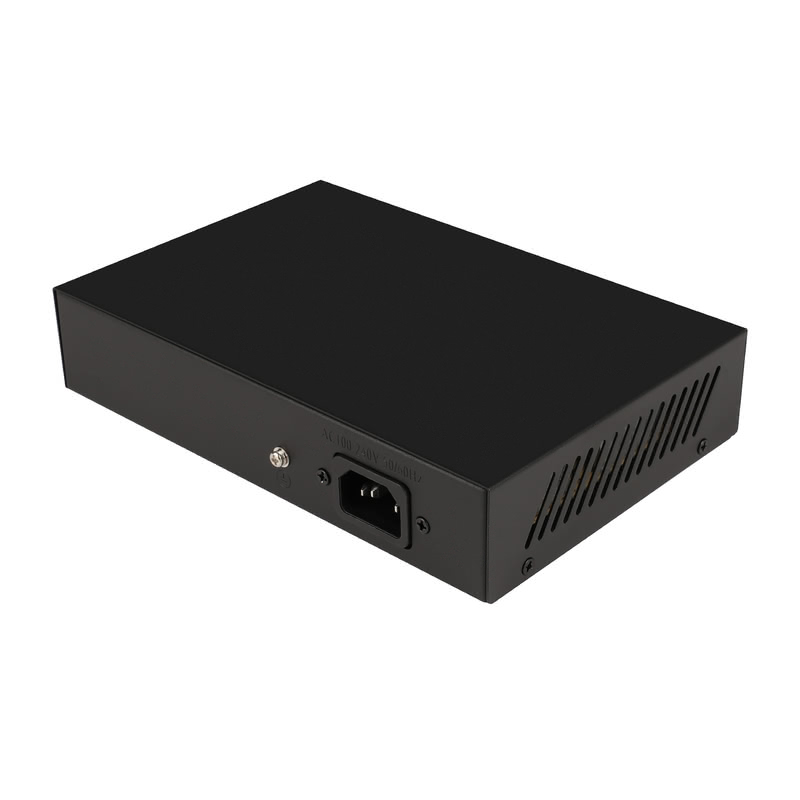

Model: PS1402G

4 Port Gigabit PoE+ Switch with 2 Uplink Ports (65W)

features

  • 4GE+2GE Full Gigabit PoE Switch
  • Ports 1–4 support IEEE 802.3af/at PoE, up to 30W per port
  • Supports smart watchdog, VLAN, and Extend mode
  • Internal 65W power supply included
  • Supports 10/100/1000Mbps auto-negotiation, auto MDI/MDI-X
  • Wire-speed forwarding on all ports
  • Supports desktop and wall-mounted installation
Catalog:
Send Inquiry By Emali: [email protected]

Datasheet

Download View

Factory price

global shipping

customer service

quality assurance

specification

  • Interfaces
  • Model
    PS1402G
  • Fixed Port

    4*10/100/1000Base-T/TXPoEports(Data/Power)

    2*10/100/1000Base-T/TXUplinkRJ45ports(Data)

  • PoE
  • PoE Port
    Port1-4supportPoE
  • Feature

    WiththeDialcodeswitch,SupportWatchdogfunctionbydefault:1-4PortsupportAI-PoENetworkself-healingmode(PoEWatchdogfunction),Automaticsolvethecameraproblem&reduceafter-sale.

    E:AIExtend300meterstransmission;

    V:Turnon,1-4PortsupporteachportIsolation&VLAN.

  • Network Protocol

    IEEE802.310BASE-T;IEEE802.3i10Base-T;

    IEEE802.3u100Base-TX;

    IEEE802.3x.

  • Ethernet Port Feature
    10/100/1000Base-T(X)automaticdetection,full/halfDuplexMDI/MDI-Xadaptive
  • Fiber Port Feature
    StoreandForward
  • Switch Property
  • Switching Capacity
    16Gbps
  • Forwarding Mode
    8.928Mpps
  • MAC
    4K
  • Buffer Memory
    1.25M
  • Twisted Pair Transmission

    10BASE-T:Cat5UTP(≤300meter)

    100BASE-TX:Cat5orlaterUTP(≤100meter)

  • Power Supply Pin
    Default1/2(+),3/6(-)
  • MAX / AVERAGE Power Per Port
    30W/15.4W
  • Total PWR / Input Voltage
    65W
  • Power Consumption

    Standby:<4W

    Full load:<65W

  • Physical Characteristics
  • LED Indicator

    Powerindicator:PWR(Green)

    Networkindicator:1-4(Link/Act)(Green),9-10(Link/Act)(Green)

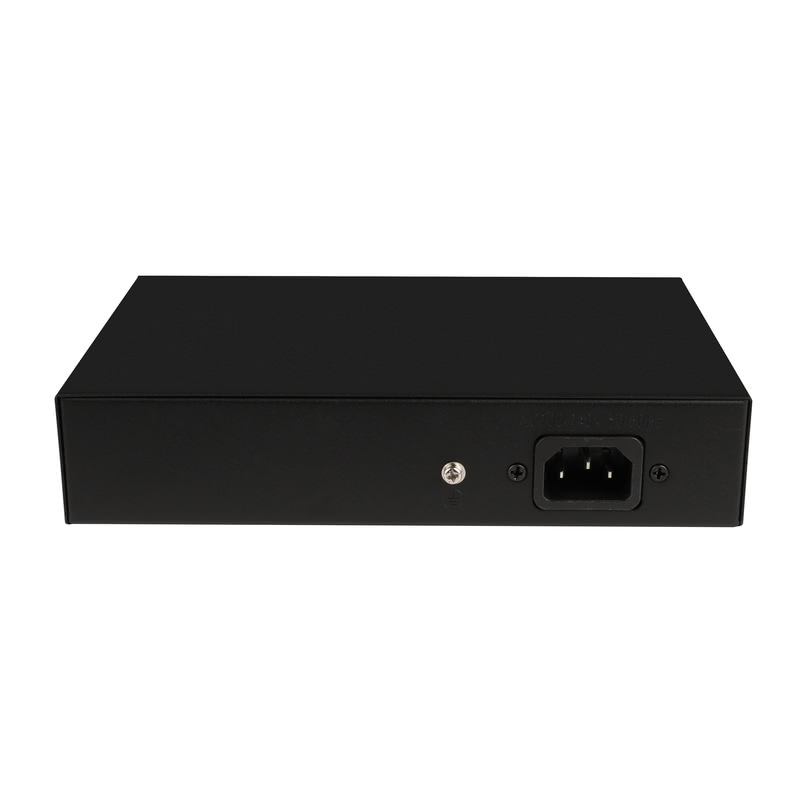

  • Power Supply
    Build-inpoweradaptorAC100~240V50-60Hz,65W
  • Operation TEMP / Humidity
    -20~+55°C:5%~90%RHnoncondensing
  • Storage TEMP / Humidity

    -40~+75°C

    5%~95%RHnoncondensing

  • Dimension
    195*135*40mm
  • Net /Gross Weight

    <1kg / <1.2kg

  • Installation Method
    desktoptype,wallmounted
  • Protection

    IEC61000-4-2(ESD):±8kVcontactdischarge,±15kVairdischarge

    IEC61000-4-5(Lightningprotection/Surge):Power:CM±4kV/DM±2kV;Port:±6kV

  • Protection Level
    IP30
  • Certification
  • Certification
    CE,FCC,RoHS
  • Package Contents
  • Switch
    1pcs
  • Power
    1pcs
  • Quick installation guide
    1pcs
