Model: PS14802SFG

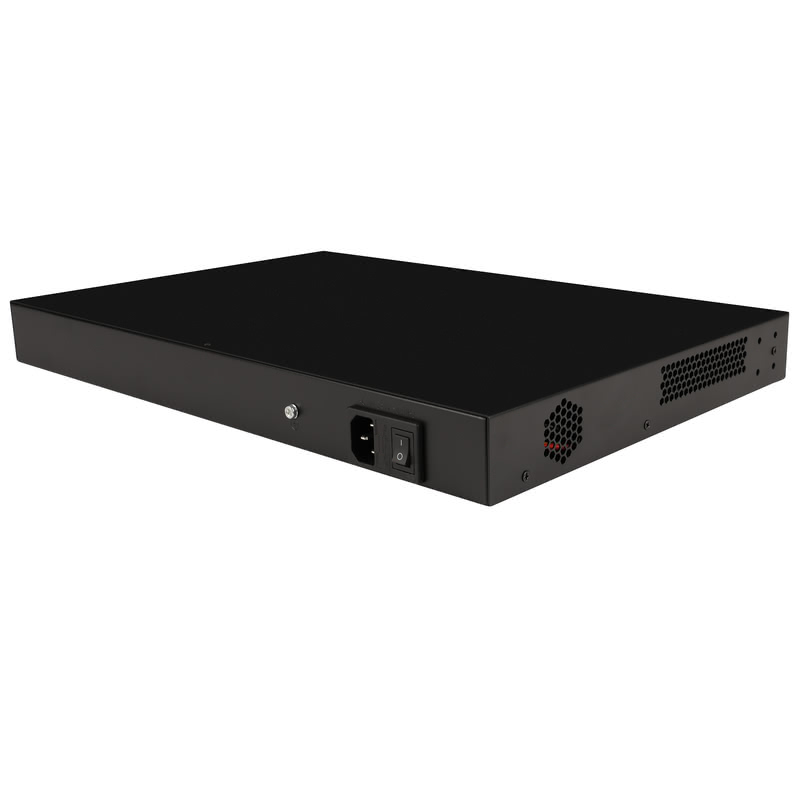

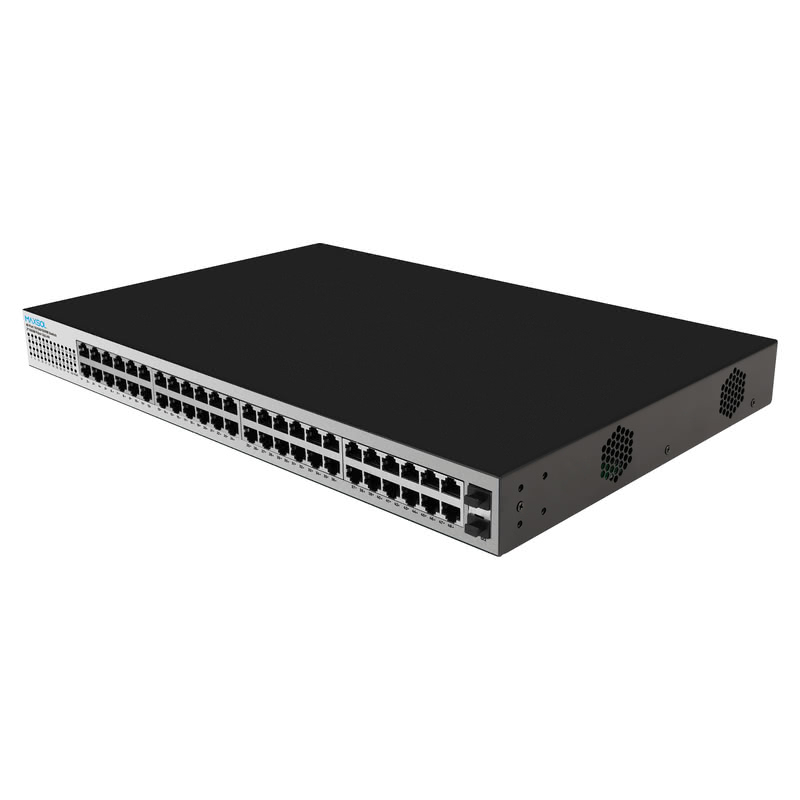

48 Port Gigabit PoE+ Switch with 2 Uplink Ports (400W)

features

  • 48GE+2GF Full Gigabit PoE Switch
  • Ports 1–48 support IEEE 802.3af/at PoE, up to 30W per port
  • Supports 10/100/1000Mbps auto-negotiation, auto MDI/MDI-X
  • Internal 400W power supply included
  • Wire-speed forwarding on all ports
  • Supports desktop, wall-mounted, and rack-mount installation
Catalog:
Send Inquiry By Emali: [email protected]

Datasheet

Download View

Factory price

global shipping

customer service

quality assurance

specification

  • Interfaces
  • Model
    PS14802SFG
  • Fixed Port

    48*10/100/1000Base-T/TXPoEports(Data/Power)

    2*1000Base-XuplinkSFPfiberslotports(Data)

  • PoE
  • PoE Port
    [email protected]/at
  • Ethernet Port Feature
    10/100/1000Base-T(X)automaticdetection,full/halfDuplexMDI/MDI-Xadaptive
  • Network Protocol

    IEEE802.310BASE-T;IEEE802.3i10Base-T;

    IEEE802.3u100Base-TX;

    IEEE802.3ab1000Base-T;

    IEEE802.3z1000Base-X;

    IEEE802.3u100Base-FX;

    IEEE802.3x.

  • PoE Standard
    IEEE802.3af/at
  • Fiber Port Feature
    GigabitSFPPort(Fibermoduleisnotincluded,needtoorderseparately,optionsincludesingle/multi-mode,single/dualfiber,LC)
  • Forwarding Mode
    StoreandForward
  • Switch Property
  • Switching Capacity
    100Gbps(non-blocking)
  • Forwarding Rate
    74.4Mpps
  • MAC
    8K
  • Buffer Memory
    4M
  • Twisted Pair Transmission

    10BASE-T:Cat5UTP(≤300meter)

    100BASE-TX:Cat5orlaterUTP(≤100meter)

    1000BASE-TX:Cat5orlaterUTP(≤100meter)

  • Power Supply Pin
    Default1/2(+),3/6(-)
  • MAX/AVERAGEPowerPerPort
    30W/15.4W
  • TotalPWR/InputVoltage
    400W(100-240V)
  • Power Consumption

    Standby:<5W

    Fullload:<400W

  • Physical Characteristics
  • LED Indicator

    Powerindicator:PWR(Green)

    Networkindicator:1-48(Link/Act)(Green),49-50(Link/Act)(Green)

  • Power Supply
    Builtinswitchingpowersupply,AC100~240V50-60Hz
  • OperationTEMP/Humidity
    -20~+55°C:5%~90%RHnoncondensing
  • StorageTEMP/Humidity

    -40~+75°C

    5%~95%RHnoncondensing

  • Dimension
    440*290*45mm
  • Net/GrossWeight

    <3kg/<4kg

  • Installation Method
    desktoptype,wallmounted,19-inch1Ucabinetinstallation
  • Protection

    IEC61000-4-2(ESD):±8kVcontactdischarge,±15kVairdischarge

    IEC61000-4-5(Lightning/Surge):Power:CM±4kV/DM±2kV;Port:±6kV

  • Protection Level
    IP30
  • Certification
  • Certification
    CE,FCC,RoHS
  • Package Contents
  • Switch
    1pcs
  • Power cord
    1pcs
  • Quick installation guide
    1pcs

Related products

16 Port Gigabit PoE+ Switch with 2 Uplink Ports (300W)

16 Port Gigabit PoE+ Switch with 2 Uplinks & 2 SFP (300W)

24 Port Gigabit PoE+ Switch with 2 Uplinks & 1 SFP (300W)

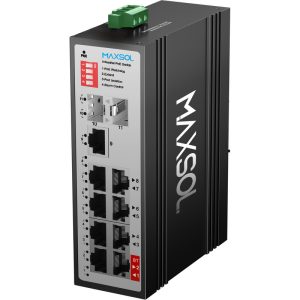

8FE+1GE+2GF HiPOE Hardened Industrial PoE Switch – Rail-Mount, IP40
