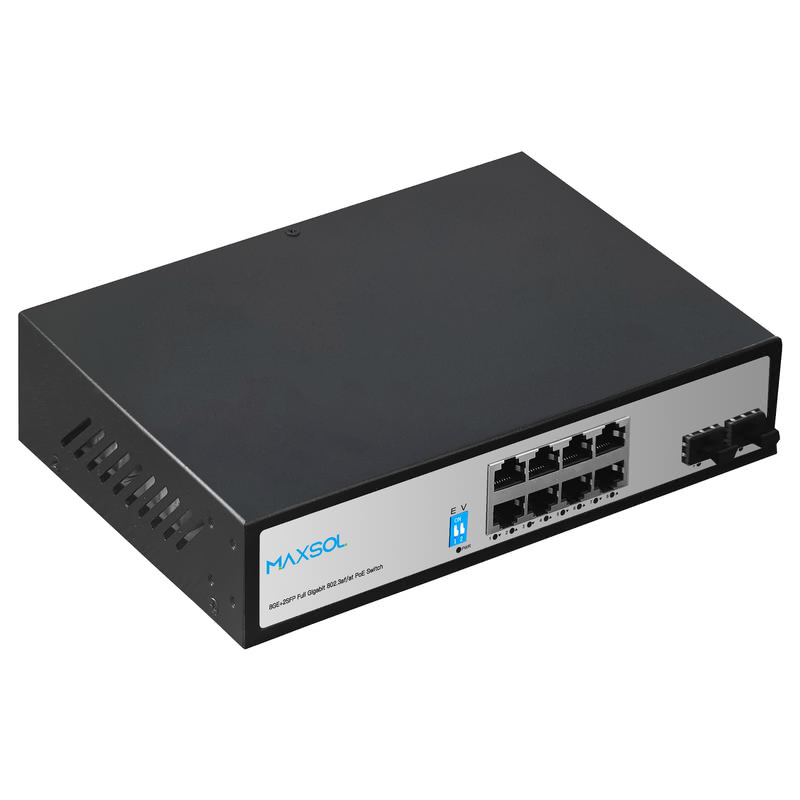

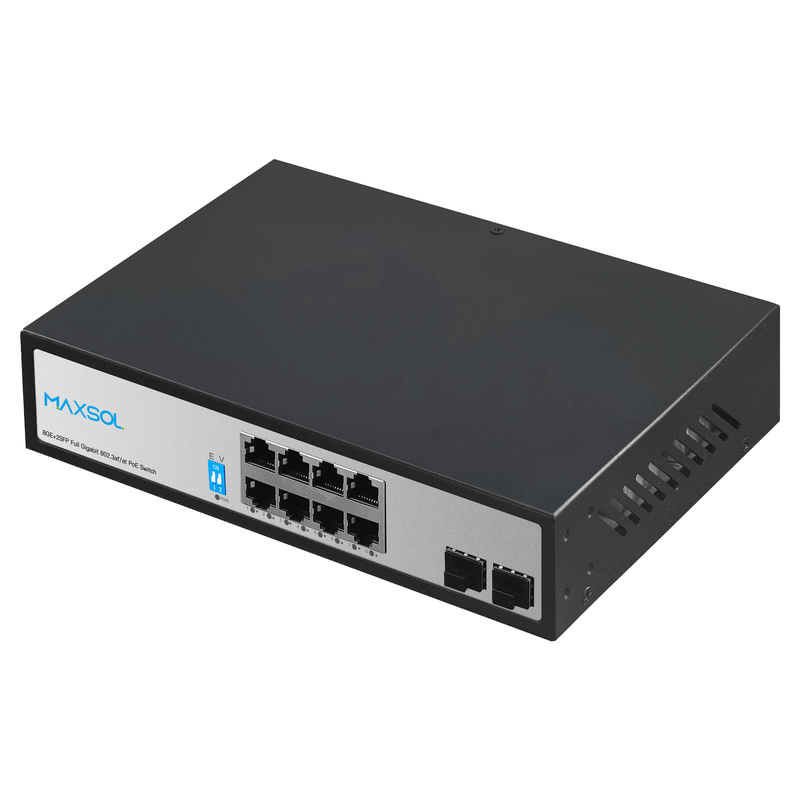

Model: PS1802SFG

8 Port Gigabit PoE+ Switch with 2 SFP Uplinks (120W)

features

  • 8GE+2GF Full Gigabit PoE Switch
  • Ports 1–8 support IEEE 802.3af/at PoE, up to 30W per port
  • Supports smart watchdog, VLAN, and Extend mode
  • Internal 120W power supply included
  • Supports 10/100/1000Mbps auto-negotiation, auto MDI/MDI-X
  • Wire-speed forwarding on all ports
  • Supports desktop, wall-mounted, and rack-mount installation
Catalog:
Send Inquiry By Emali: [email protected]

Datasheet

Download View

Factory price

global shipping

customer service

quality assurance

specification

  • Interfaces
  • Model
    PS1802SFG
  • Fixed Port

    8*10/100/1000Base-T/TXPoEports(Data/Power)

    2*10/100/1000Base-T/TXSFPPorts(Data)

  • PoE
  • PoE Port
    Port1-8supportPoE
  • Feature

    WiththeDialcodeswitch,supportportprioritybydefault.

    E:AIExtend300meterstransmissionandautospeedchangeofsingleport(limit10Mbps),otherportsmaintain100M/1000Mwithin100meters;

    V:Turnon,1-8PortsupporteachportIsolation&VLAN;

    D:Turnon,1-8PortsupportAI-PoENetworkself-healingmode(PoEWatchdogfunction),Automaticsolvethecameraproblem&reduceafter-sale.

  • Network Protocol

    IEEE802.310BASE-T;IEEE802.3i10Base-T;

    IEEE802.3u100Base-TX;

    IEEE802.3ab1000Base-T;

    IEEE802.3x

  • Ethernet Port Feature
    10/100Base-T(X)10/100/1000Base-Tautomaticdetection,full/halfDuplexMDI/MDI-Xadaptive
  • Fiber Port Feature
    GigabitSFPPort(Fibremoduleisnotincluded,needtoorderseparately,moduleoptionsincludesingle/multi-mode,single/dualfiber,LC)
  • Forwarding Mode
    StoreandForward
  • Switch Property
  • Switching capacity
    22Gbps
  • Buffer Memory
    4M
  • MAC
    4K
  • Forwarding Rate
    16.368Mpps
  • Twisted Pair Transmission

    10BASE-T:Cat5UTP(≤300meter)

    100BASE-TX:Cat5orlaterUTP(≤100meter)

    1000BASE-T:Cat5orlaterUTP(≤100meter)

  • Power Supply Pin
    Default1/2(+),3/6(-);
  • MAX / AVERAGE Power Per Port
    30W/15.4W
  • Total PWR / Input Voltage
    120W
  • Power Consumption

    Standby:<2W

    Full load:<120W

  • Physical Characteristics
  • LED Indicator

    Powerindicator:PWR(Green)

    Networkindicator:1-8(Link/Act)(Green),9-11(Link/Act)(Green)

  • Power Supply
    Build-inpoweradaptorAC100~240V50-60Hz,120W
  • Operation TEMP / Humidity
    -20~+55°C:5%~90%RHnoncondensing
  • Storage TEMP / Humidity

    -40~+75°C

    5%~95%RHnoncondensing

  • Dimension
    220*145*45mm
  • Net /Gross Weight

    <1kg / <1.2kg

  • Installation Method
    desktotype,wallmounted
  • Protection

    IEC61000-4-2(ESD):±8kVcontactdischarge,±15kVairdischarge

    IEC61000-4-5(Lightningprotection/Surge):Power:CM±4kV/DM±2kV;Port:±6kV

  • Protection Level
    IP30
  • Certification
  • Certification
    CE,FCC,RoHS
  • Package Contents
  • Switch
    1pcs
  • Power cord
    1pcs
  • Quick installation guide
    1pcs
