Model: PS1802FG

8 Port Gigabit PoE+ Switch with 2 Uplinks & 1 SFP (150W)

features

Datasheet

Factory price

global shipping

customer service

quality assurance

specification

Interfaces
Model
PS1802FG
Fixed Port
8*10/100/1000Base-T/TXPoEports(Data/Power)
2*10/100/1000Base-T/TXUplinkRJ45ports(Data)
1*10/100/1000Base-T/TXSFPPorts(Data)

PoE
POE Port
Port1-8supportPoE
Feature
WiththeDialcodeswitch,supportportprioritybydefault.
E:AIExtend300meterstransmissionandautospeedchangeofsingleport(limit10Mbps),otherportsmaintain100M/1000Mwithin100meters;
V:Turnon,1-8PortsupporteachportIsolation&VLAN;
D:Turnon,1-8PortsupportAI-PoENetworkself-healingmode(PoEWatchdogfunction),Automaticsolvethecameraproblem&reduceafter-sale.
Network Protocol
IEEE802.310BASE-T;IEEE802.3i10Base-T;
IEEE802.3u100Base-TX;
IEEE802.3ab1000Base-T;
IEEE802.3x
Ethernet Port Feature
10/100Base-T(X)10/100/1000Base-Tautomaticdetection,full/halfDuplexMDI/MDI-Xadaptive
Fiber Port Feature
GigabitSFPPort(Fibremoduleisnotincluded,needtoorderseparately,moduleoptionsincludesingle/multi-mode,single/dualfiber,LC)
Forwarding Mode
StoreandForward

Switch Property
Switching capacity
22Gbps
Buffer Memory
4M
MAC
4K
Forwarding Rate
16.368Mpps
Twisted Pair Transmission
10BASE-T:Cat5UTP(≤300meter)
100BASE-TX:Cat5orlaterUTP(≤100meter)
1000BASE-T:Cat5orlaterUTP(≤100meter)
Power Supply Pin
Default1/2(+),3/6(-);
MAX / AVERAGE Power Per Port
30W/15.4W
Total PWR / Input Voltage
120W
Power Consumption
Standby:<2W
Full load:<120W

Physical Characteristics
LED Indicator
Powerindicator:PWR(Green)
Networkindicator:1-8(Link/Act)(Green),9-11(Link/Act)(Green)

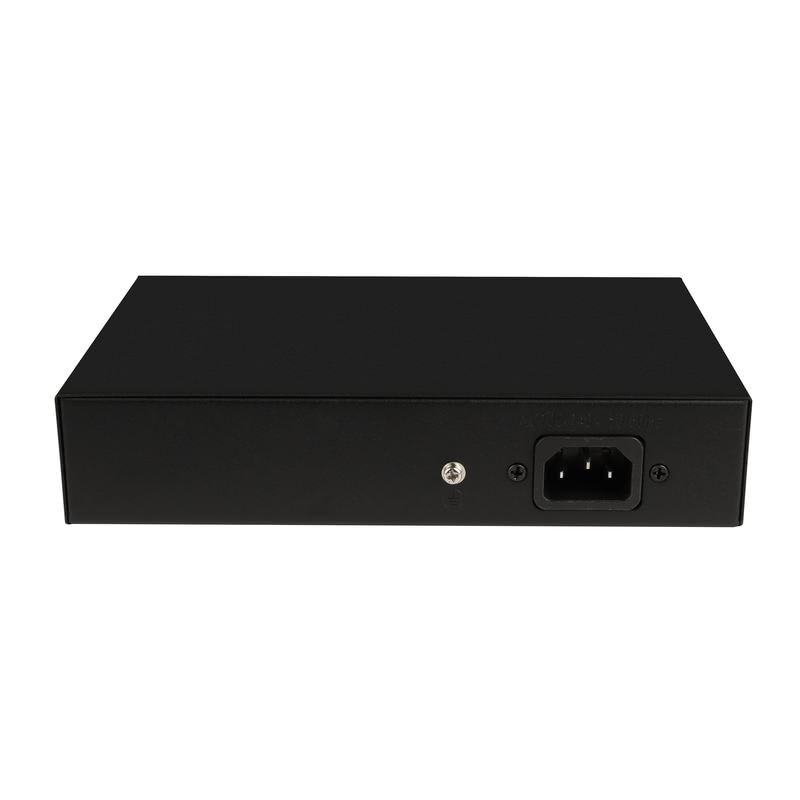

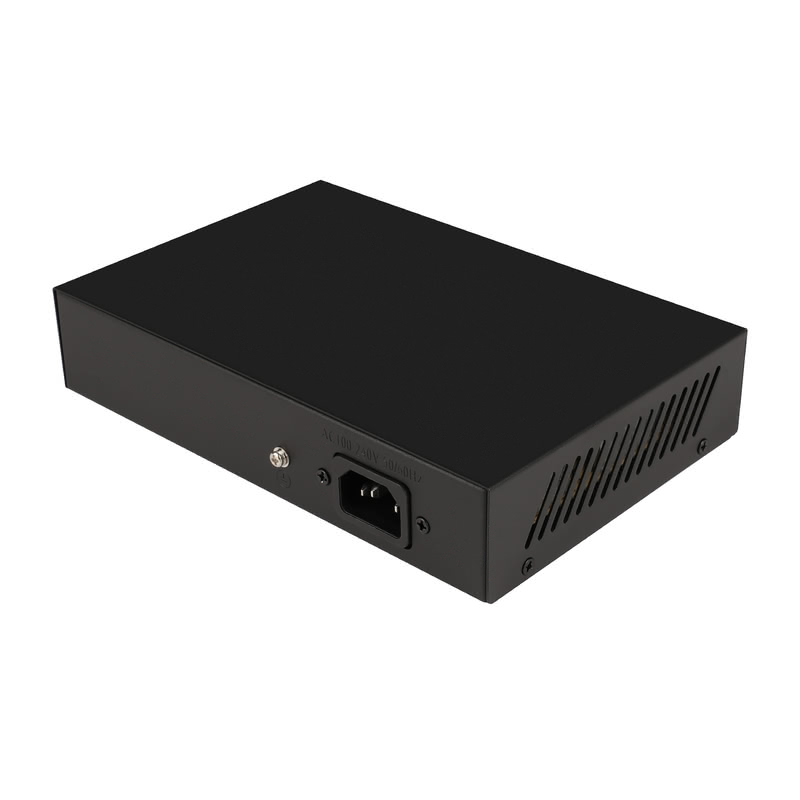

Power Supply
Build-inpoweradaptorAC100~240V50-60Hz,120W
Operation TEMP / Humidity
-20~+55°C:5%~90%RHnoncondensing
Storage TEMP / Humidity
-40~+75°C
5%~95%RHnoncondensing
Dimension
220*145*45mm
Net /Gross Weight
<1kg / <1.2kg
Installation Method
desktotype,wallmounted
Protection
IEC61000-4-2(ESD):±8kVcontactdischarge,±15kVairdischarge
IEC61000-4-5(Lightningprotection/Surge):Power:CM±4kV/DM±2kV;Port:±6kV
Protection Level
IP30
