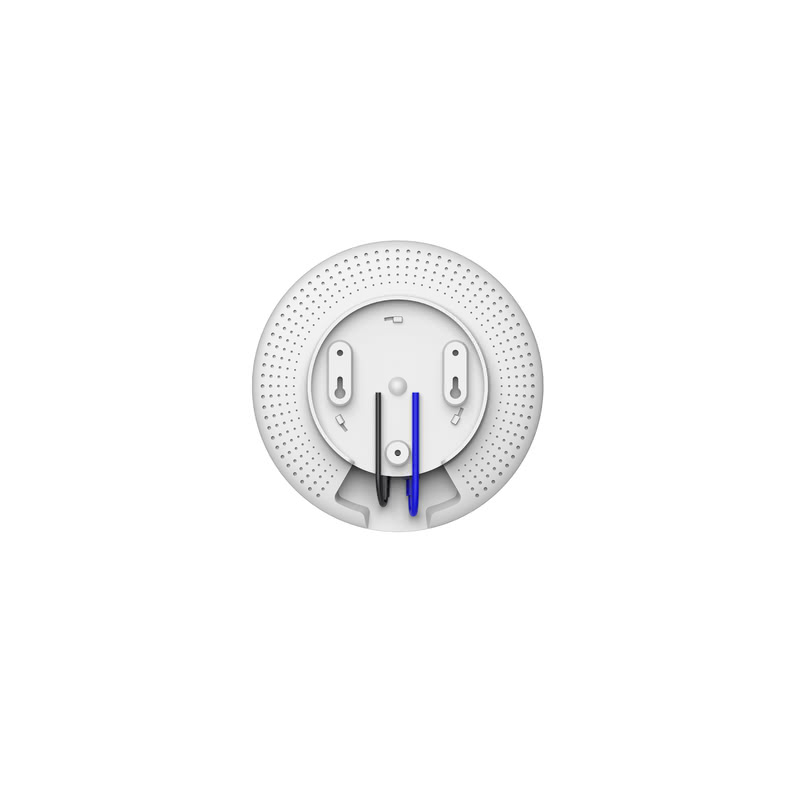

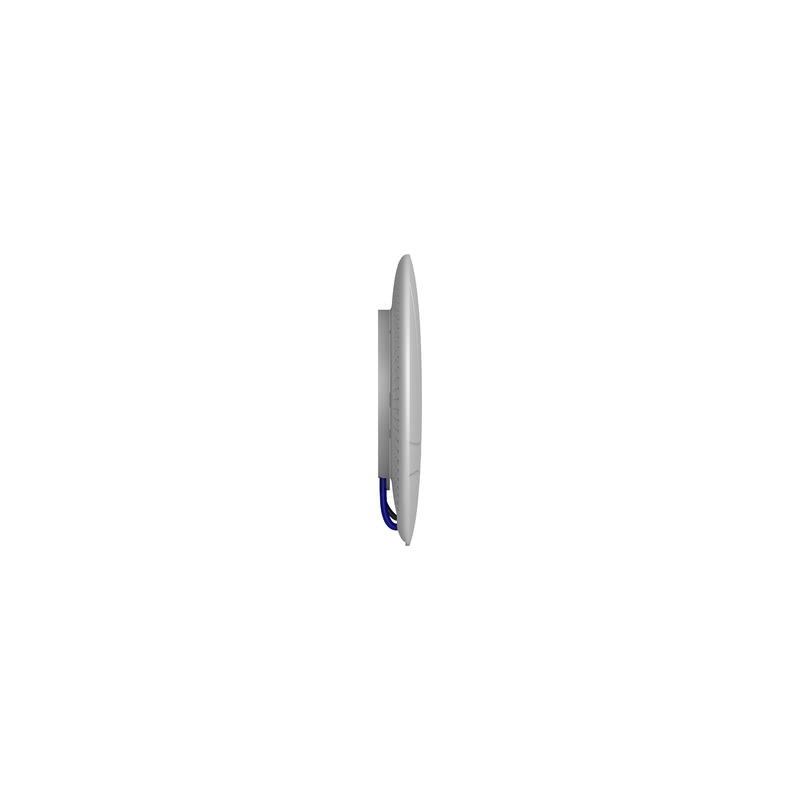

Model: AP125

802.11AC 2.4G&5.8G 1200Mbps Indoor Wireless Ceiling AP

features

  • 802.11AC 2.4G&5.8G 1200Mbps Indoor Wireless Ceiling AP
  • 11AC Wave2 2.4GHz 300Mbps+5.8Ghz 866Mbps
  • MTK chipset 512Mb 16b DDR2, 64Mb NorFlash, 200mW High-Power,access 128users
  • 2* 4.5 dBi (2.4G ) + 2* 5dBi (5.8G ) inside antenna
  • 1× Gigabit Port/POE，Support 48V200mA/802.3af Power Supply
  • Supports AP mode, DHCP routing, up to 128 users, Wi-Fi hotspot and MESH backhaul
  • WEB management, local firmware upgrade or centralized online upgrade; WPA/WPA2/WPA3 with mixed-user access
Catalog:
Send Inquiry By Emali: [email protected]

Datasheet

Download View

Factory price

global shipping

customer service

quality assurance

specification

  • Hardware Specifications
  • Model
    AP125
  • Wi-Fi standard

    Wi-Fi 5

    5.8 GHz IEEE 802.11ac/n/a

    2.4 GHz IEEE 802.11n/b/g

  • Wireless speed

    AC1200

    5 GHz: 866 Mbps (802.11ac, VHT80)

    2.4 GHz: 300 Mbps (802.11n)

  • Antenna

    5GHz 5 dBi, Omni-directional

    2.4 GHz 4.5 dBi, Omni-directional

  • Max EIRP

    5 GHz 32 dBm

    2.4 GHz 31.5 dBm

    EIRP may be limited by country regulations

  • SOC
    MIPS(580 MHz)
  • RAM
    512Mb 16b DDR2
  • FLASH
    64Mb NorFlash
  • Interface
    1× Gigabit Port/POE
  • LEDs
    SYS
  • Overall dimensions
    210 x 22.3 mm (with an installation bracket of 8 mm)
  • Work environment

    Operating temperature: -10℃ to 45℃ Storage temperature: -40℃ to 70℃

    Operating humidity: 10% to 90%RH (no condensation)

    Storage humidity: 5% to 90%RH (no condensation)

  • Protection level
    15KV ESD
  • Power consumption
    ≤10W
  • Power supply method
    48V300mA /802.3af/at,12VDC
  • Packaging accessories

    1 AP

    4. Install screws

    1. User manual

    1. Warranty card

  • Software Specifications
  • Work mode
    AP access point
  • DHCP routing
  • Total number of users connected to the entire system
    128
  • Networking method
    WiFi hotspot
  • MESH backhaul
  • Management approach
    WEB management
  • Wireless Security
    WPA,WPA2,WPA3,and Pre-RSNA users are mixedly accessing the network.
  • System update
    WEB Local upgrade,centralized management of online upgrade

Related products

802.11AX WIFI6 2.4G&5.8G 3000M Indoor Wireless Ceiling AP

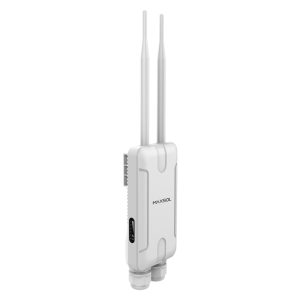

802.11ax (Wi-Fi 6) 2.4GHz & 5.8GHz 3000Mbps IP67 Outdoor Wireless AP

802.11AX WIFI6 2.4G&5.8G 3000M Indoor Wireless Ceiling AP

You may also interested

  • 48V 480W DIN-Rail Power Supply

  • 5.8G 900M 5KM Wireless CPE

  • 8FE+2GE Uplink Lite Series 300M 120W Long Range PoE Switch

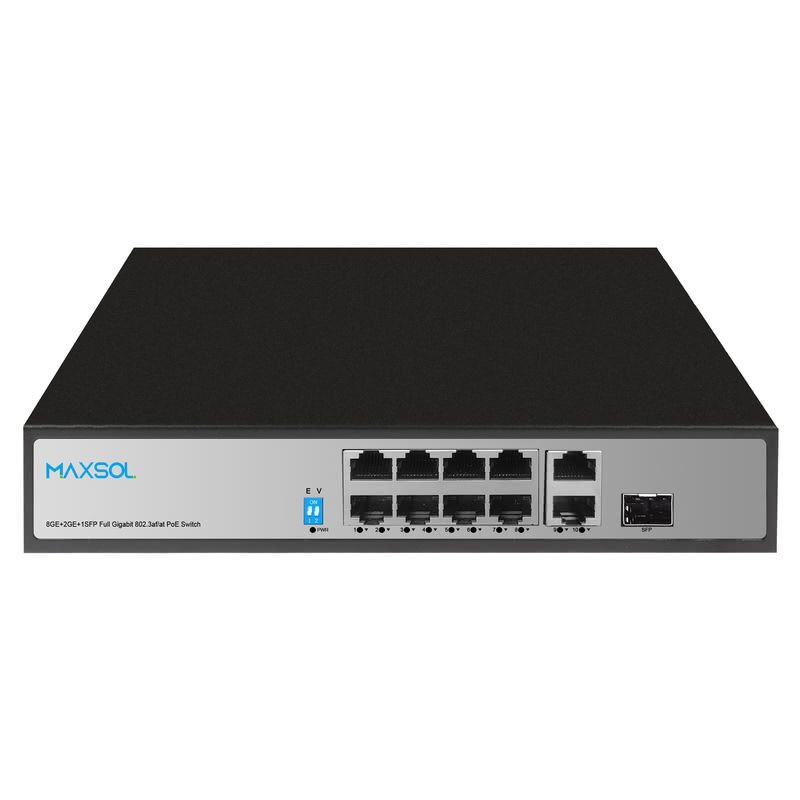

  • 8 Port Gigabit PoE+ Switch with 2 Uplinks & 1 SFP (150W)
