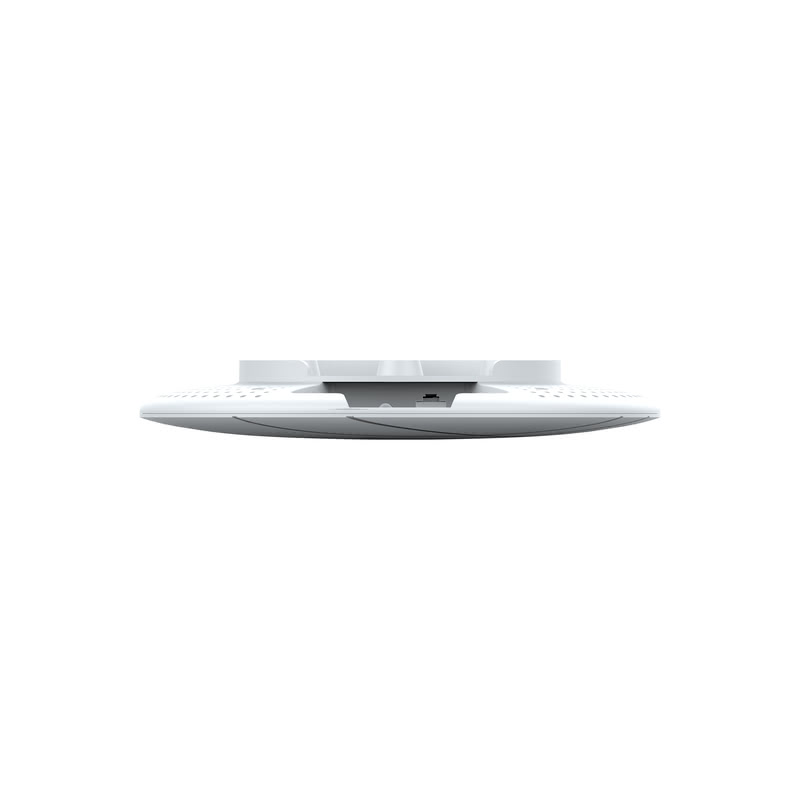

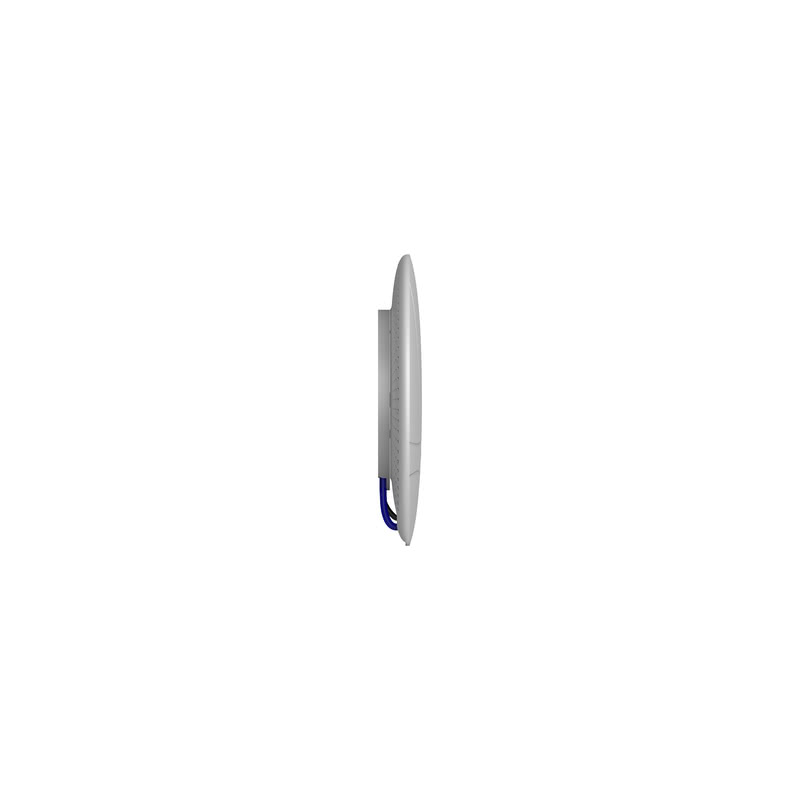

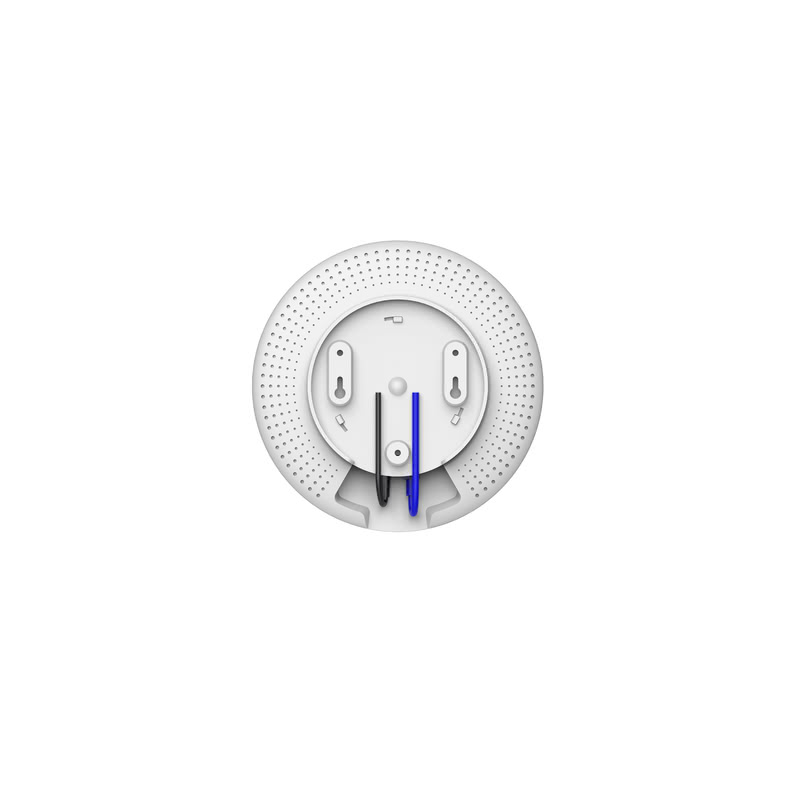

Model: AP306

802.11AX WIFI6 2.4G&5.8G 3000M Indoor Wireless Ceiling AP

features

  • 802.11AX WIFI6 2.4G&5.8G 3000M Indoor Wireless Ceiling AP
  • 11AX 2.4GHz 574Mbps+5.8Ghz 2400Mbps
  • MTK chipset Dual core 1.3GHz,MT7981B, 2Gb DDR3, 128Gb norFlash ,access 128users
  • 1× Gigabit Port/POE
  • 2.4G internal 4.5 dBix2PCS, 5G internal 6dBi x3PCS，All-directional Omni
  • Support 48V300mA /802.3af/at,12VDC
  • Supports AP mode, DHCP routing, up to 128 users, Wi-Fi hotspot and MESH backhaul
  • WEB management, local firmware upgrade or centralized online upgrade; WPA/WPA2/WPA3 with mixed-user access
Catalog:
Send Inquiry By Emali: [email protected]

Datasheet

Download View

Factory price

global shipping

customer service

quality assurance

specification

  • Hardware Specifications
  • Model
    AP306
  • Wi-Fi standard

    Wi-Fi 6

    5.8 GHz IEEE 802.11ax/ac/n/a

    2.4 GHz IEEE 802.11ax/n/b/gAt

  • Wireless speed

    AX3000

    5 GHz: 2400 Mbps (802.11ax, HE160)

    2.4 GHz: 574 Mbps (802.11ax)

  • Antenna

    5GHz 6 dBi, Omni-directional

    2.4 GHz 4.5 dBi, Omni-directional

  • Max EIRP

    5 GHz 32 dBm

    2.4 GHz 30.5 dBm

    EIRP may be limited by country regulations

  • SOC
    Dual core 1.3GHz,MT7981B
  • RAM
    2Gb DDR3
  • FLASH
    128Gb norFlash
  • Interface
    1× Gigabit Port/POE,1 x DC
  • LEDs
    SYS
  • Overall dimensions
    210 x 22.3 mm (with an installation bracket of 8 mm)
  • Work environment

    Operating temperature: -10℃ to 45℃ Storage temperature: -40℃ to 70℃

    Operating humidity: 10% to 90%RH (no condensation)

    Storage humidity: 5% to 90%RH (no condensation)

  • Protection level
    15KV ESD
  • Power consumption
    ≤10W
  • Power supply method
    48V300mA /802.3af/at,12VDC
  • Packaging accessories

    1 AP

    4. Install screws

    1. User manual

    1. Warranty card

  • Software Specifications
  • Work mode
    AP access point
  • DHCP routing
  • Total number of users connected to the entire system
    128
  • Networking method
    WiFi hotspot
  • MESH backhaul
  • Management approach
    WEB management
  • Wireless Security
    WPA,WPA2,WPA3,and Pre-RSNA users are mixedly accessing the network.
  • System update
    WEB Local upgrade,centralized management of online upgrade
