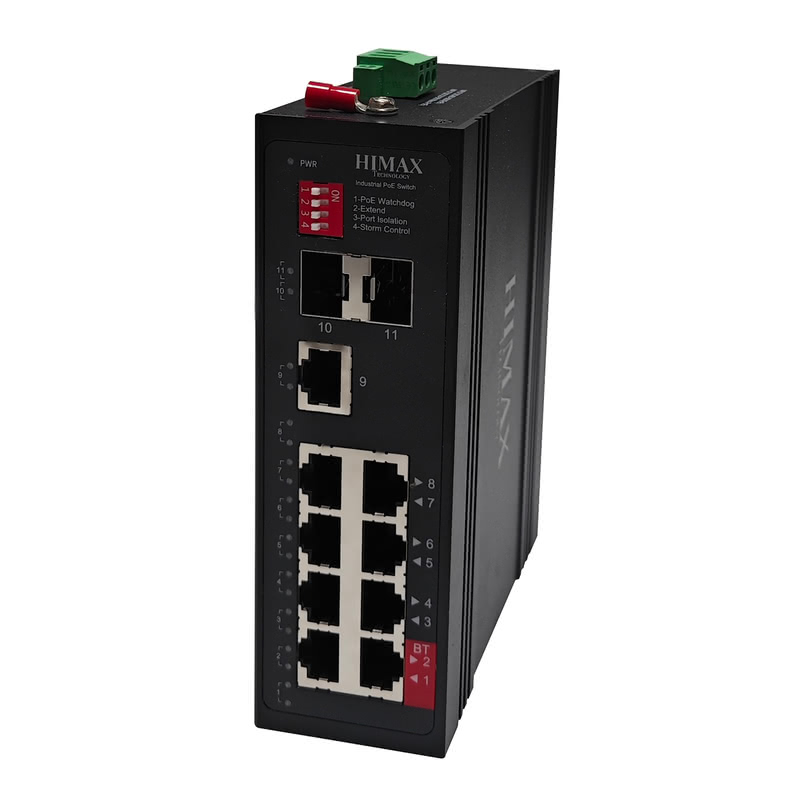

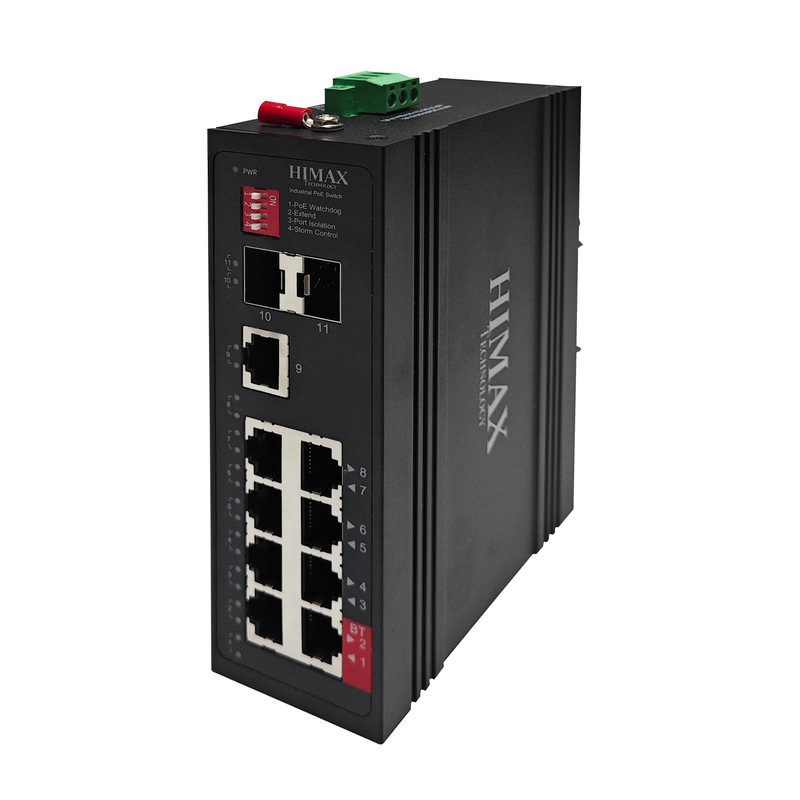

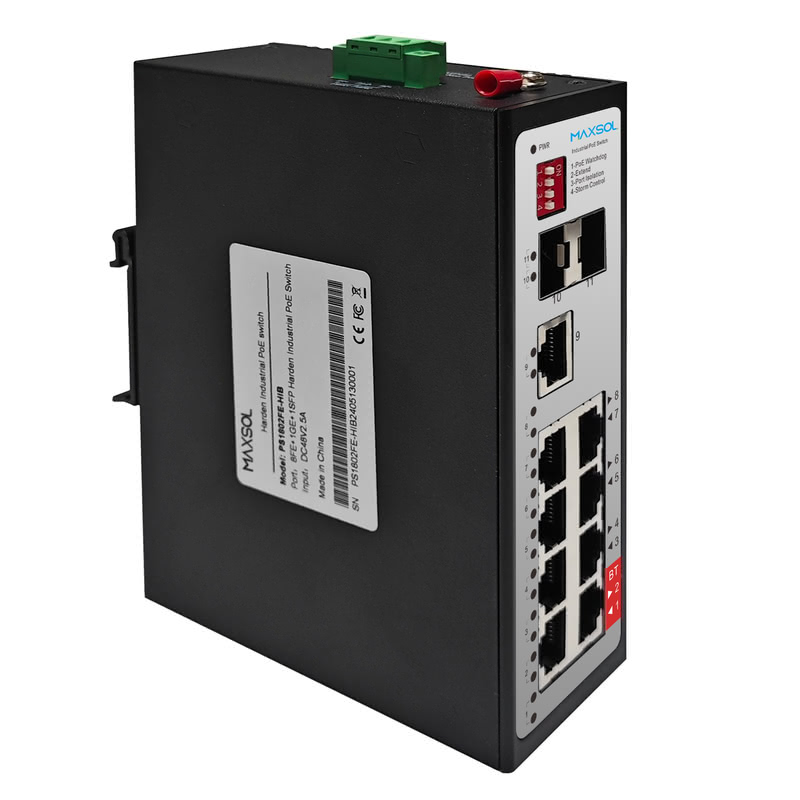

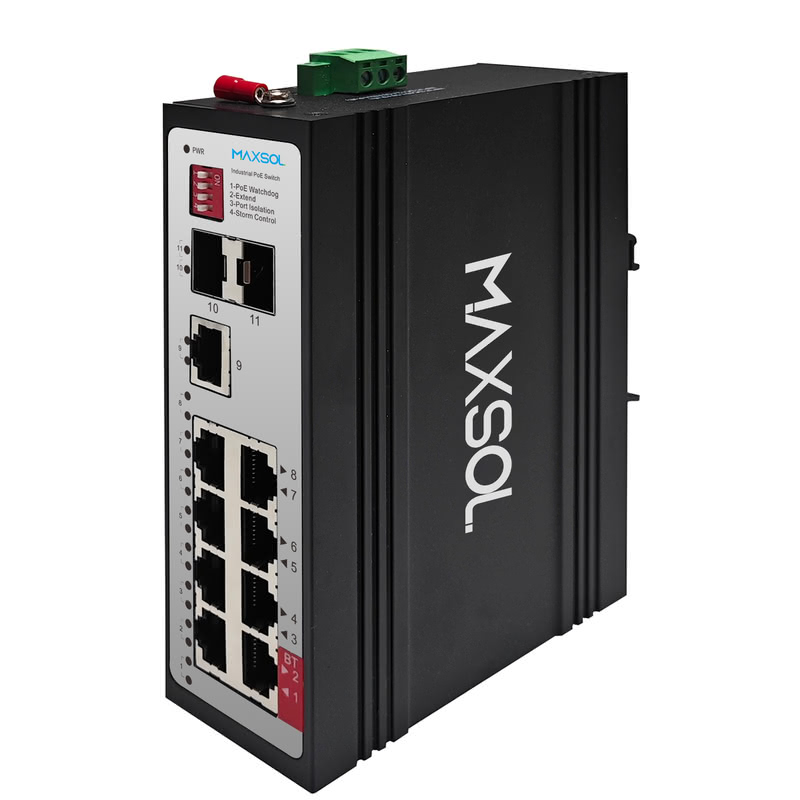

8FE+1GE+2GF HiPOE Hardened Industrial PoE Switch – Rail-Mount, IP40

8 × 10/100Base-T/TX PoE ports (Data/Power)

1 × 10/100/1000Base-T RJ45 port (Data)

2 × 100/1000Base-X SFP ports (Data)

Ports 3–8: IEEE802.3af/at

Ports 1–2: IEEE802.3af/at/bt 90W

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-T/TX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE802.3u 100BASE-FX

IEEE802.3x

Ring: Unsupported

Star / Bus / Tree: Supported

Dial code switch supports port priority

PoE watchdog, 250m long-distance transmission, VLAN, Storm suppression

Switching capacity: 7.6G

Forwarding rate: 5.65Mpps

MAC table: 16K

Buffer: 2K

Forwarding delay: <5µs

MDI/MDIX: Supported

Flow control: Supported

Jumbo frame: Supported 2K bytes

Twisted-pair: 0–100m (CAT5e/6)

Monomode fiber: 20–100km

Multimode fiber: 550m

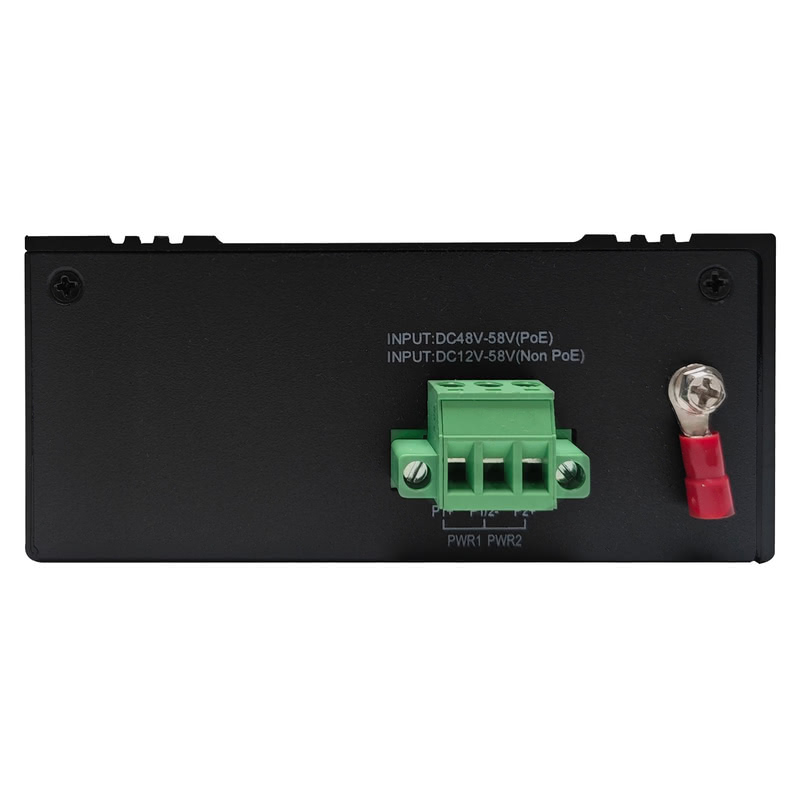

Input: DC48–58V

Main board: <10W

PoE pins: 1,2+/3,6- (AF/AT), 1–8 (BT)

Operating: -30~+65°C

Storage: -40~+75°C

Humidity: 10–90% non-condensing

Cooling: Fanless, natural

MTBF: 100,000 hours

Size: 46×104×143mm (W×D×H)

Installation: DIN rail

Weight: ~0.55kg

IP Level: IP40

Surge Power: IEC61000-4-5 Level3 (4kV/2kV, 8/20µs)

Surge Ethernet: IEC61000-4-5 Level3 (4kV/2kV, 10/700µs)

ESD: IEC61000-4-2 Level4 (8kV/15kV)
