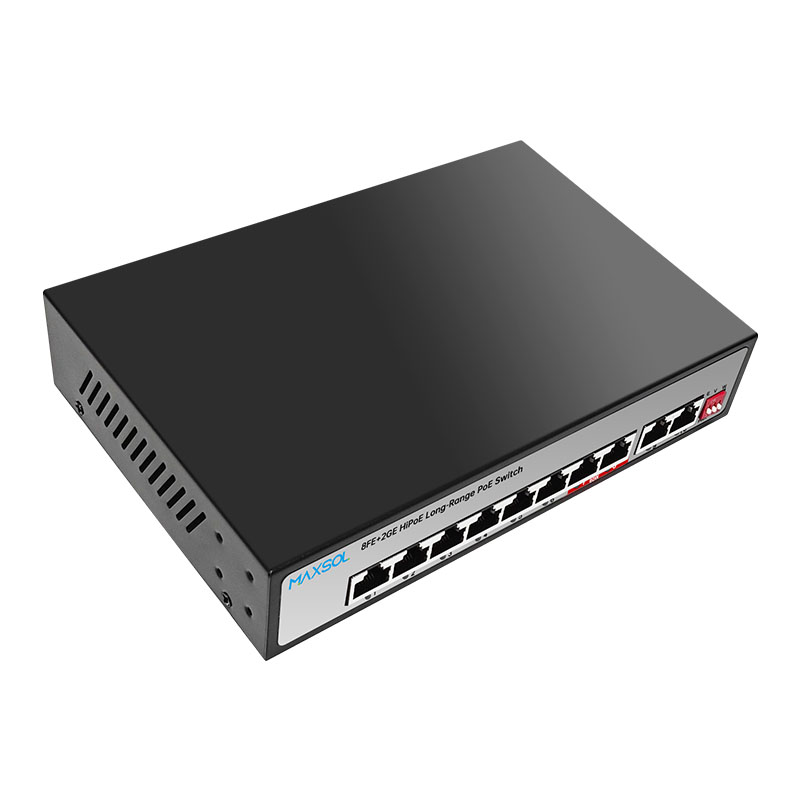

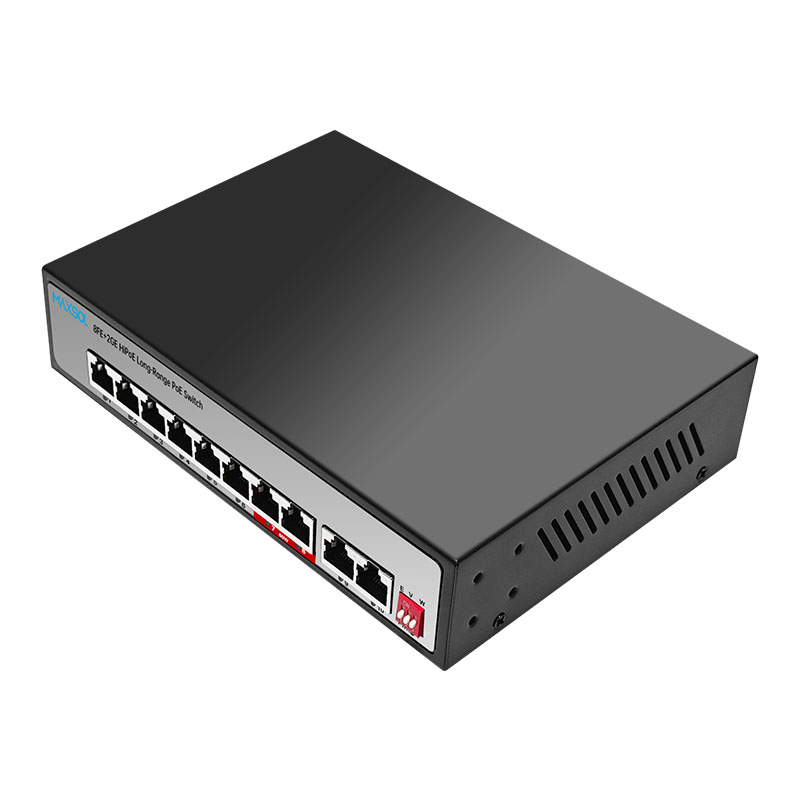

8FE+2GE Uplink HiPoE 300M 120W Long Range PoE Switch

PS1802GE

8*10/100Base-T/TX PoE ports (Data/Power)

2*10/100/1000Base-T/TX Uplink RJ45 ports (Data)

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX;

IEEE802.3x.

10/100Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive

Store and Forward

Port 1-8 support PoE

With the Dial code switch, support port priority by default.

E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters;

V: Turn on, 1-8 Port support each port Isolation & VLAN;

W: Turn on, 1-8 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.

5.6Gbps

4.17Mpps

4K

1.25M

10BASE-T:Cat5 UTP(≤300 meter)

100BASE-TX:Cat5 or later UTP(≤100 meter)

Default 1/2(+), 3/6(-)

Port 1-3 30W/15.4W, Port 4 60W/15.4W

120W

Standby:<4W

Full load:<120W

Power indicator: PWR (Green);

Network indicator: 1-8(Link/Act)/ (Green),9-10(Link/Act)/ (Green),

Build-in power adaptor AC100~240V 50-60Hz,120W

-20~+55°C:5%~90% RH non condensing

-40~+75°C;5%~95% RH non condensing

195*130*40mm

Net: <1kg

Gross: <1.2kg

desktop type ,wall mounted

IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV

IP30

CE, FCC, RoHS

1 pcs

1 pcs

1 pcs
