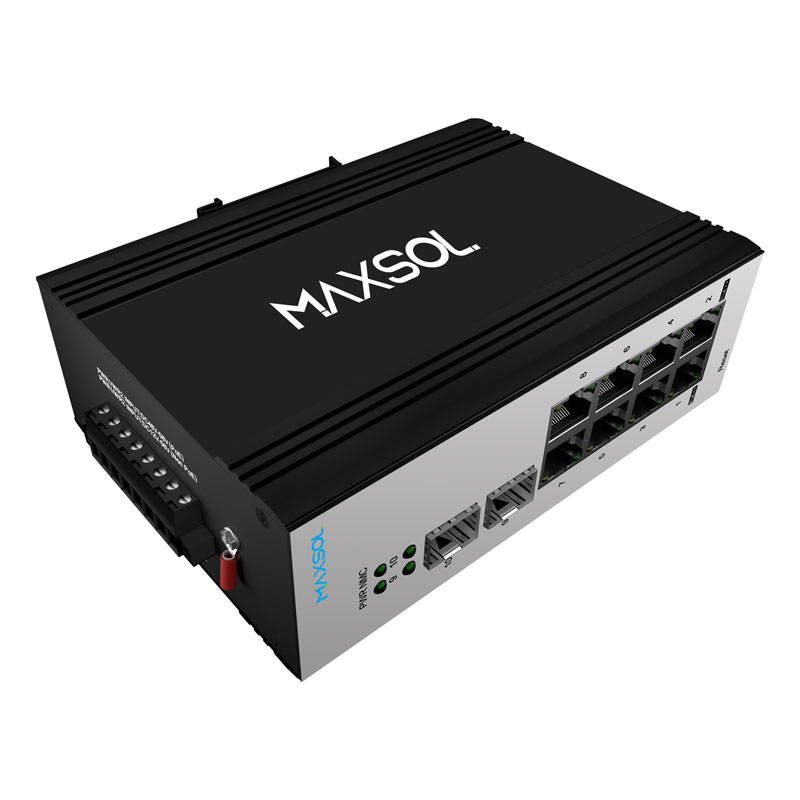

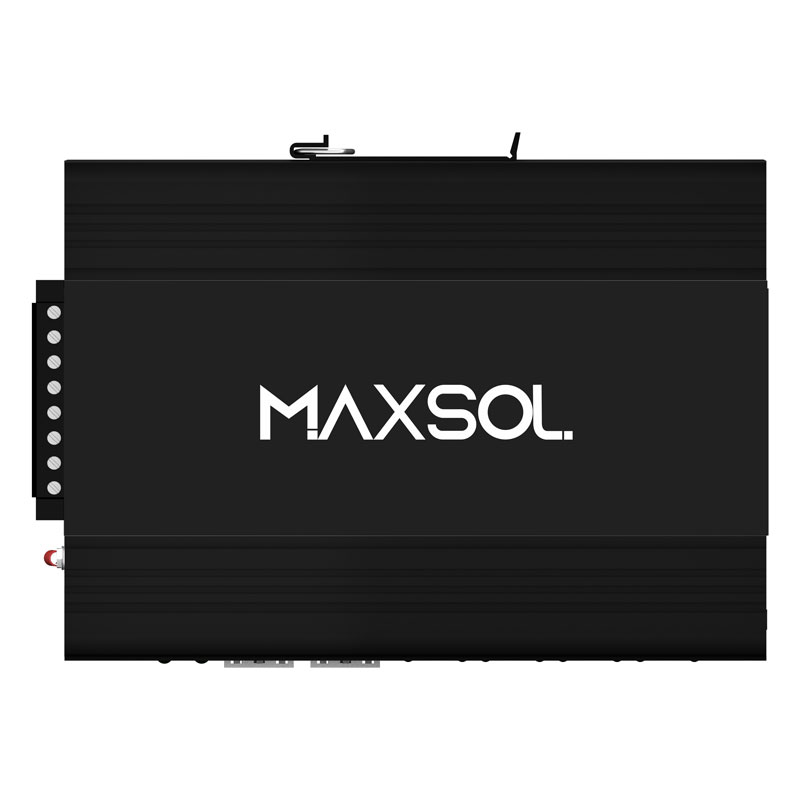

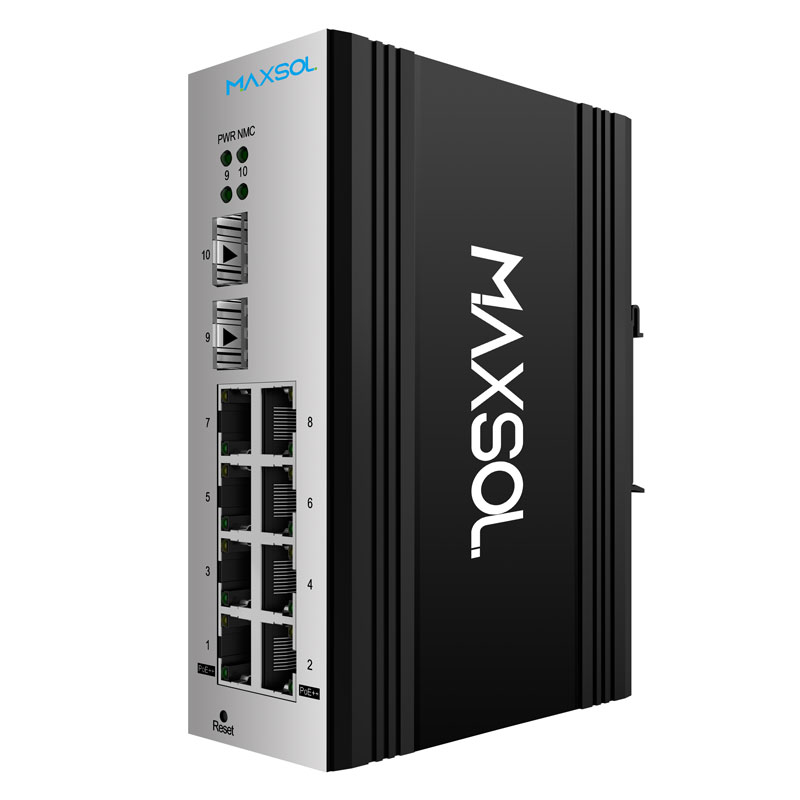

Model: PS2802SFG-I-BT

8GE+2GE SFP Management DIN-Rail Industrial PoE Switch

features

  • 8GE + 2GE SFP managed DIN-rail industrial PoE switch | total PoE power up to 90W
  • Ports 1–8 support PoE / PoE+ (IEEE 802.3af/at); Ports 1–2 support PoE++ 90W (IEEE 802.3bt)
  • Non-blocking architecture with Marvell chipset, DIN-rail mount, DC 48–58V wide voltage input
  • Power surge protection: 6KV / 6KV; Ethernet port surge protection: 4KV / 4KV
  • Web / SNMP management; VLAN, QoS, RMON, LLDP, IGMP Snooping, Port Mirroring, QinQ, Link Aggregation, DDM, ACL, SSH
  • IPv4 / IPv6 management; DHCP, NTP, FTP, TFTP, Telnet, Ping, Traceroute; RSTP, MSTP, ERPS ring network; 802.1X / RADIUS; Remote PoE power-off alarm; IPv4 / IPv6 static routing
Catalog:
Send Inquiry By Emali: [email protected]

Datasheet

Download View

Factory price

global shipping

customer service

quality assurance

specification

  • Provider Mode Ports
  • Model
    PS2802SFG-I-BT

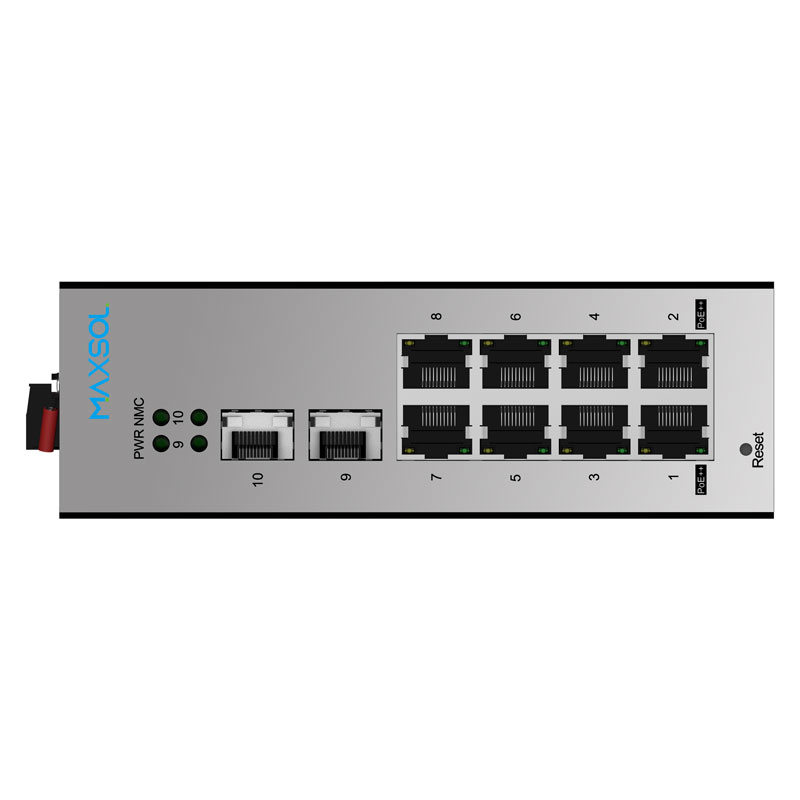

  • Fixed port

    2*1000 Base-X，8*10/100/1000 Base-T

  • Management Port
    Support Console

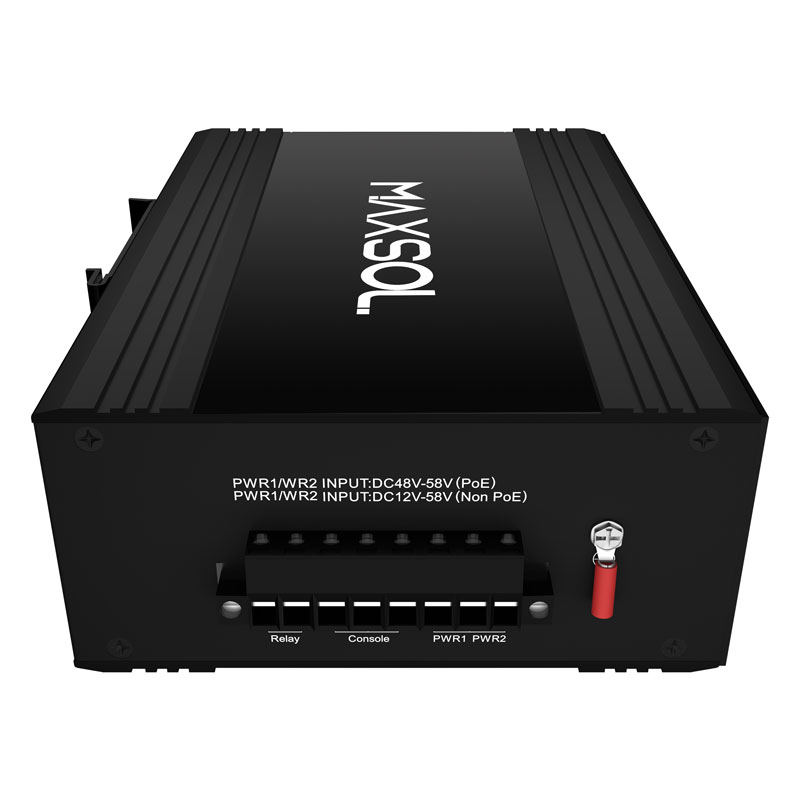

  • Power interface
    Phoenix terminal, dual power input
  • LED Indicators
    PWR，Link/ACT LED
  • Cable Type & Transmission Distance
  • Twisted-pair
    0-100m（CAT5e,CAT6）
  • Monomode optical fiber
    20/40/60/80/100KM
  • Multimode optical fibre
    550m
  • Network Topology
  • Ring topology
    Support
  • Star topology
    Support
  • Bus topology
    Support
  • Tree Topology
    Support
  • Hybrid topology
    Support
  • Electrical Specifications
  • Input voltage
    PoE：DC48-58V
  • Total Power consumption
    PoE<250W
  • PoE Support (optional)
  • PoE port
    1-8
  • PoE Protocol
    802.3af，802.3at
  • Pin Assignment
    1,2+,3,6-
  • PoE Management
    Support
  • PoE ++ Support (optional)
  • PoE++ port
    1-2
  • PoE Protocol
    802.3af，802.3at，802.3bt(1-2 Support)
  • Pin Assignment
    1245+ 3678-
  • PoE Management
    Support
  • Layer 2 Switching
  • Switching capacity
    36G
  • Packet forwarding rate
    26.78Mpps
  • MAC address table
    16K
  • VLAN
    Support 4K
  • Buffer
    12M
  • Forwarding delay
    <10us
  • MDI/MDIX
    Support
  • Flow control
    Support
  • Jumbo Frame
    Support 10Kbytes
  • Spanning Tree
    Support STP/RSTP/MSTP
  • Ring Protocol
    Support ERPS
  • Link Aggregation
    Support 12 group
  • Multicast
    Support IGMP Snooping
  • Port Mirroring
    Support SPAN and RSPAN
  • Port loopback detection
    Support
  • Storm Control
    Support
  • Interface Counters
    Support
  • QINQ
    Support
  • 802.1X
    Support
  • MAC Authentication
    Support
  • Port Isolation
    Support
  • RMON
    Support
  • NTP Client
    Support
  • DHCP Client
    Support
  • DHCP snooping
    Support
  • Ping/tracert test
    Support
  • Dying gasp
    Support
  • DDM
    Support
  • Port security
    Support
  • IP Source Guard
    Support
  • Device scanning
    Support
  • Layer 3 Function
  • IPv4 static routing/IPv6 static routing
    Supports 256 static routes
  • ARP
    ARP table entry aging
  • DHCP server
    support
  • Convergence
  • ACL

    Supports 240 ACL entries;

    Support IP standard ACL/ACLv6;

    Support MAC extension ACL/ACLv6;

    Support IP extension ACL/ACLv6;

    Support L4 layer ACL

  • QoS

    Support QoS re-marking, priority mapping

    Support SP, WRR queue scheduling

    Support engress rate-limited, egress rate-limit

    Support Policy-based QoS

  • Management
  • CLI
    Support
  • Console
    Support
  • Management IP
    Support IPv4/IPv6
  • Telnet/SSH
    Support
  • WEB management
    Support
  • SNMP
    Support SNMPv1/v2c/v3
  • User Management
    Support
  • User Rights Management
    Support
  • System Log
    Support
  • Configuration File Download/Upload
    Support
  • Upgrade Firmware
    Support
  • Environment
  • Operating temperature
    -40℃~+85℃
  • Storage temperature
    -40℃~+85℃
  • Relative humidity
    5%~95% （non-condensing）
  • Thermal methods
    Fanless, natural cooling
  • MTBF
    100,000 hours
  • Mechanical Dimensions
  • Product size
    48X104X143mm

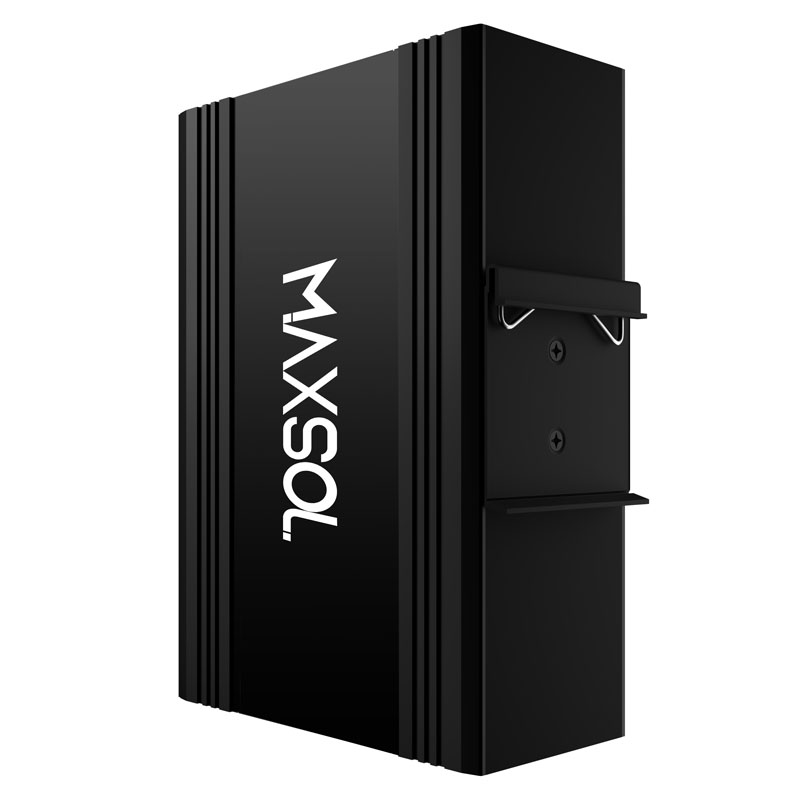

  • Installation Method
    DIN-rail
  • Weight
    0.58KG
  • EMC&INGRESS PROTECTION
  • IP Level
    IP40
  • Surge protection of Power
    IEC 61000-4-5 Level X（6KV/6KV）（8/20us）
  • Surge protection of Ethernet port
    IEC 61000-4-5 Level 4（4KV/4KV）（10/700us）
  • RS
    IEC 61000-4-3 Level 3（10V/m）
  • EFI
    IEC 61000-4-4 Level 3（1V/2V）
  • CS
    IEC 61000-4-6 Level 3（10V/m）
  • PFMF
    IEC 61000-4-8 Level 4（30A/m）
  • DIP
    IEC 61000-4-11 Level 3（10V）
  • ESD
    IEC 61000-4-2 Level 4（8K/15K）
  • Free fall
    0.5m
  • Authentication
  • Authentication
    CE/FCC/RoHS
  • Accessories
  • Accessories

    Device, Terminals, Specification, Certificate

    Adapter(optional)

Related products

16FE+2GE+1GF Uplink HiPoE 300M 200W Long Range PoE Switch

24FE+2GE+1GF Uplink HiPoE 300M 300W Long Range PoE Switch

4GE+2GE SFP Management DIN-Rail Industrial PoE Switch

4 Port Gigabit PoE+ Switch with 2 Uplink Ports (65W)

You may also interested

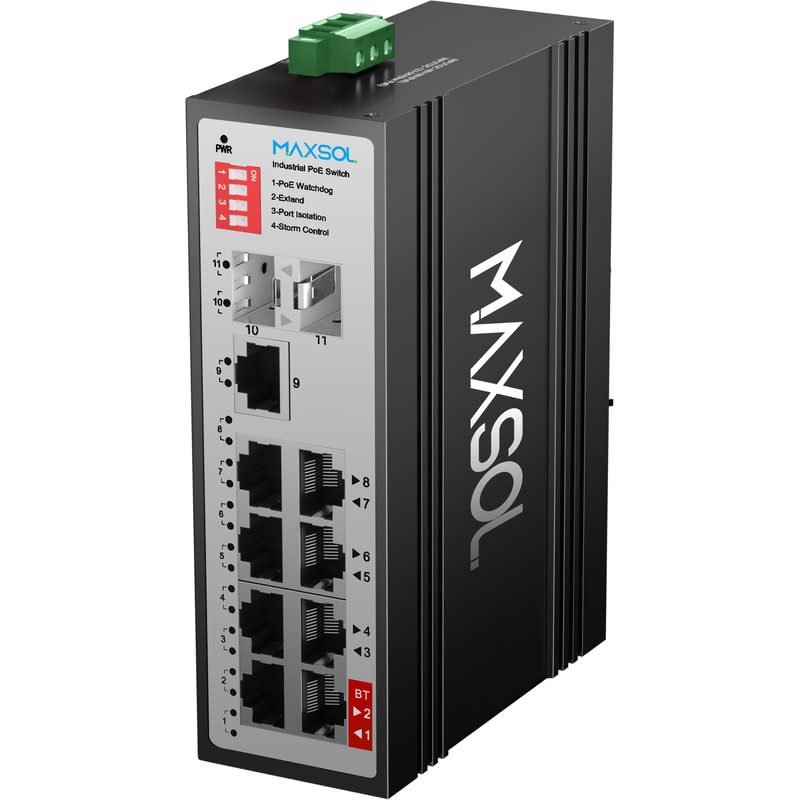

  • 8FE+1GE+2GF HiPOE Hardened Industrial PoE Switch – Rail-Mount, IP40
