Model: CS3015

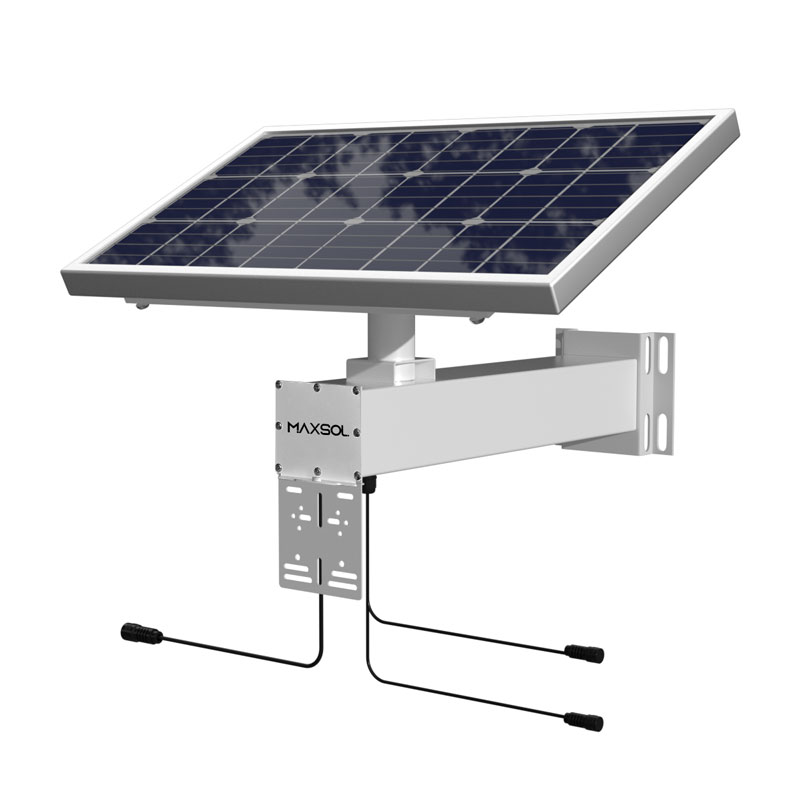

30W 15Ah 192Wh Solar System

features

  • CCTV Solar Power Supply 30W15AH 192WH Solution
  • Solar panel: 30W monocrystalline silicon solar panel
  • Battery: 15AH12.8V LifePO4 Battery, total: 192WH
  • MPPT Solar Controller, 3*DC12V Output Port

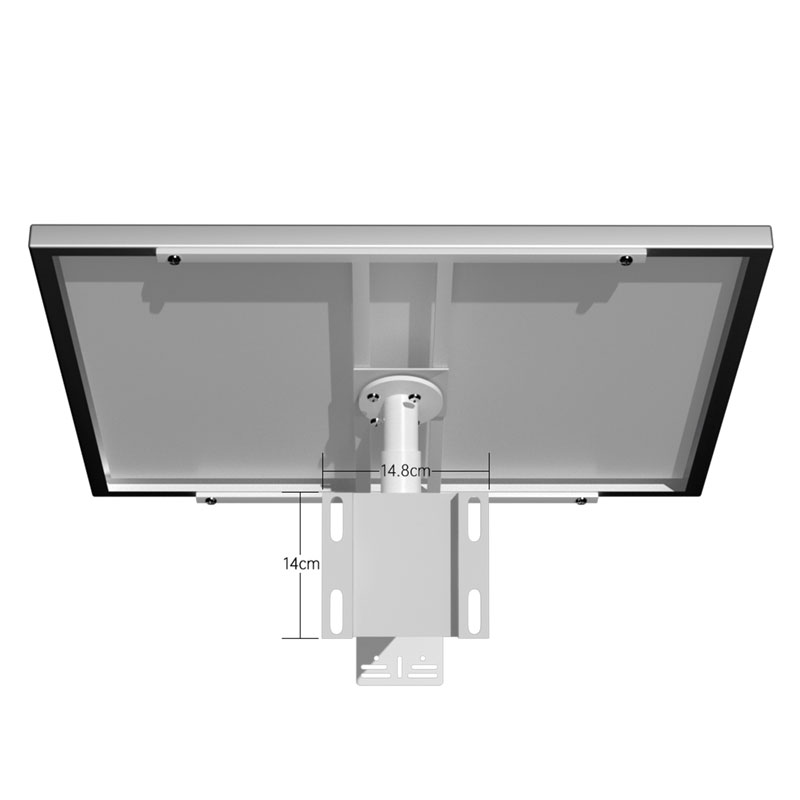

  • Installation Bracket for Solar Panel and Battery

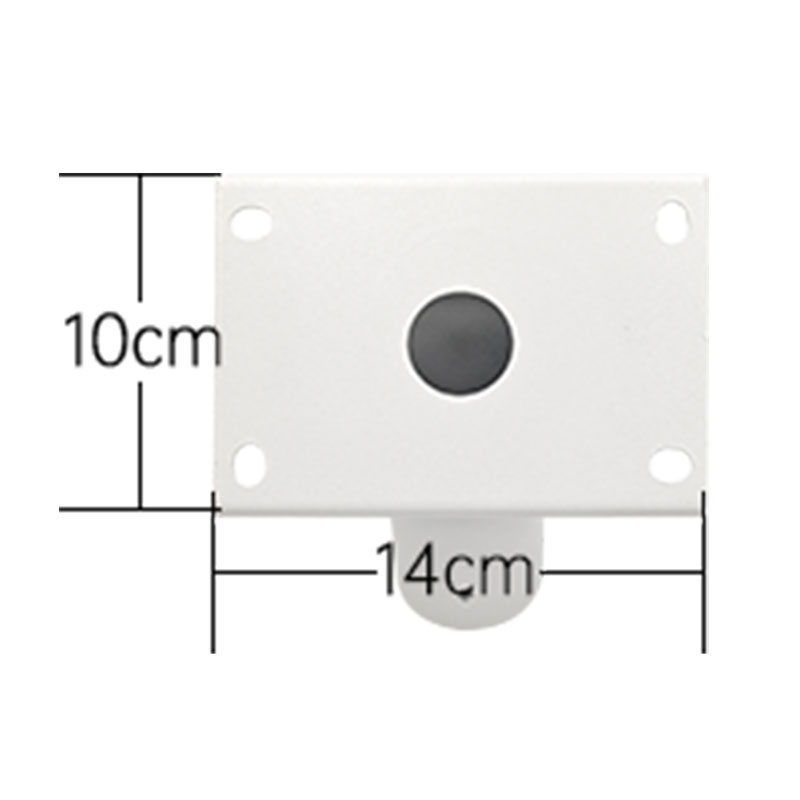

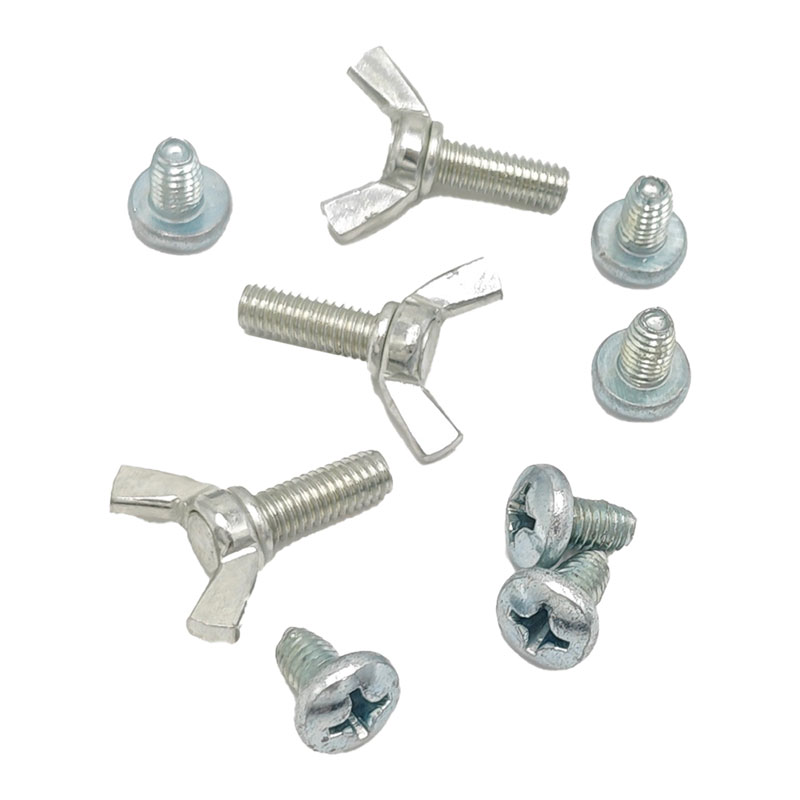

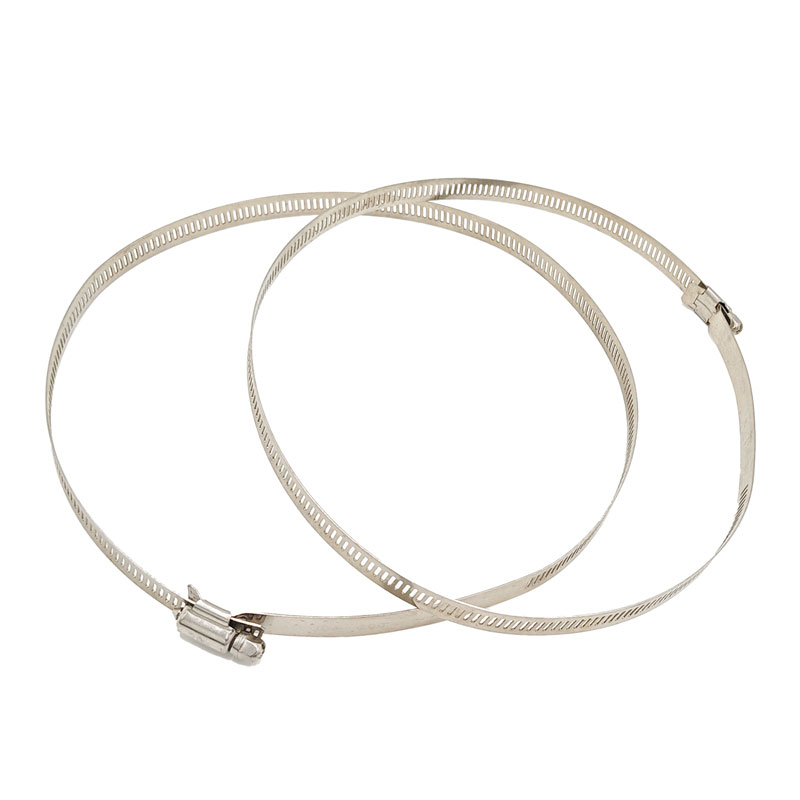

  • Other accessories: Battery Mount, Screws, DC Cable, etc
  • Optional Selection: RS485
Catalog:
Send Inquiry By Emali: [email protected]

Factory price

global shipping

customer service

quality assurance

  • Solar Panel Specification
  • Model
    CS3015 (30W15AH12.8V)
  • Communication interface
    Mono-crystalline silicon
  • Maximum power
    30W (1000W/m² standard lighting test conditions)
  • Open circuit voltage
    22VDC
  • Maximum current
    4.4A
  • Solar Panel Dimensions
    530mm*350mm*25mm
  • Battery Specification
  • Solution
    MPPT (input maximum power tracking algorithm), constant voltage output,
  • Battery capacity
    12.8V/15AH (192WH)
  • Charging indication
    LED status indicator
  • Charging voltage
    15-18VDC
  • Maximum charging current
    6A
  • Output voltage
    12±0.2VDC
  • Maximum output current
    3A (total of 2 outputs)
  • Battery pack overcharge voltage
    14.6VDC
  • Battery pack over-discharge voltage
    10VDC
  • Input interface
    Photovoltaic aviation plug
  • Output interface
    DC5.5mm diameter standard male plug, 2 outputs in total
  • Power on power consumption
    0.5±0.1W (normal temperature, no load when powered on)
  • Waterproof level
    IP65
  • Storage temperature
    0~45℃
  • Operating temperature

    Charging: -10~50℃

    Discharging: -10~60℃

  • Battery case Dimensions
    500mm*98mm*82mm
  • Battery life and charging
  • Battery life when powered off
    2 years (battery pack has no output after shutdown, power loss is self-discharge of battery cells, about 3%-5%/month)
  • Battery life when powered on
    About 25 days (normal temperature, no load)
  • Battery life with load
    About 1-2 days (room temperature, no charging, mobile camera mounted)
  • Recharge time (0~100% battery)
    Conditions: normal temperature, 30W photovoltaic panel, standard light duration 4~5 hours/day
  • All-in-one Package
  • Size
    730mm*380mm*240mm
  • Weight (Include bracket and accessories)
    7.9KG
