Model: CS400150

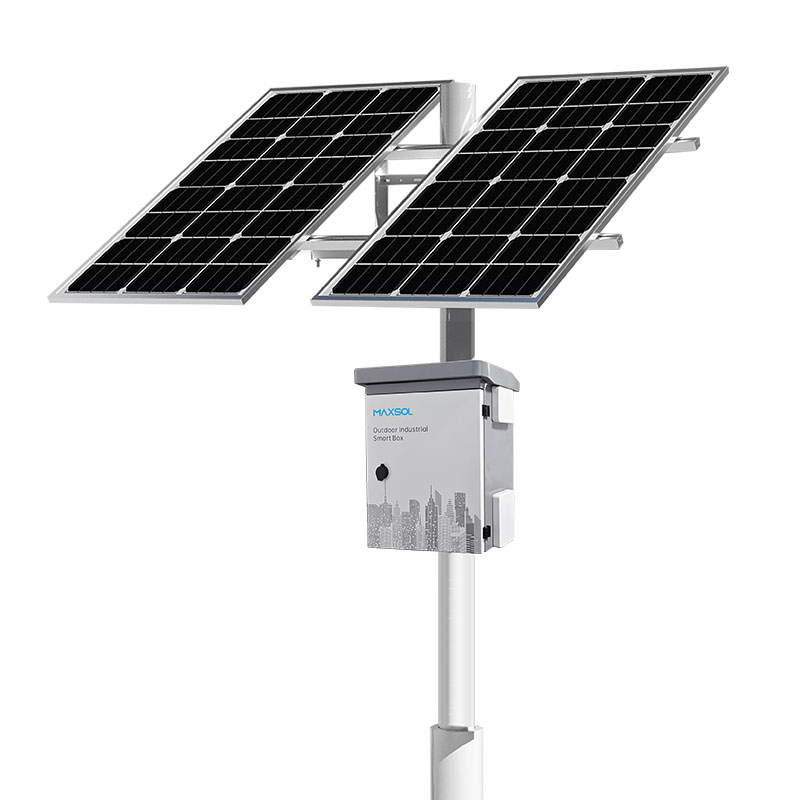

400W 150AH 1920Wh Solar System

features

  • CCTV Solar Power Supply 400W/150AH 1920WH Solution
  • Solar panel: 400W monocrystalline silicon solar panel
  • Battery: 150AH12.8V LifePO4 Battery, total: 1920WH
  • MPPT Solar Controller, 4*DC12V Output Port
  • Big Battery Cabinet Box(500mm*400mm*200mm)
  • Other accessories: Battery Mount, Screws, DC Cable, etc
Catalog:
Send Inquiry By Emali: [email protected]

Factory price

global shipping

customer service

quality assurance

  • Solar Panel
  • Model
    CS400150
  • Material
    High-efficiency mono-crystalline silicon cell, high-strength aluminum alloy frame
  • Panel materials
    Super white toughened glass
  • Life
    25years
  • Maximum power (Pm)
    200W*2
  • Photoelectric Conversion Efficiency (%)
    ≥20.4%
  • Voltage at Pmax（Vmp）
    18V
  • Current at Pmax（Imp）
    10.96A
  • Open-Circuit Voltage of Solar Panel (V)
    22.0V
  • Open circuit voltage – VOC (V)
    21.80A
  • Short circuit current – ISC (A)
    11.62A
  • Module dimensions (L×W×H)
    1290*760*30mm
  • Module weight (KG)
    10.3 Kg
  • Frame material and dimensions (mm)
    Anodized aluminum alloy 1.2mm
  • Module packaging
    Tempered glass/EVA/cell/EVA backsheet
  • Charger
  • PV Charging Method
    MPPT
  • System voltage
    12V/24V
  • Max PV Input
    180W/12V;360W/24V
  • MAX PV Input Voltage
    65V
  • MAX PV Charge Current
    20A
  • Maximum PV input current
    15A
  • MPPT tracking efficiency
    ＞99%
  • Power Supply System
  • Power output
    12V
  • DC connector
    3.1MM×10MM
  • Battery capacity
    150AH／1920WH/LiFePo4 Battery
  • Battery Size
    320*170*120mm
  • Battery life
    ﹥3 years
  • Charging time
    5(H)
  • Controller
    Fully intelligent digital controller, with the functions of preventing overcharge, overdischarge, lightning protection, short circuit and reverse connection
  • Controller life
    ﹥10 Years
  • Waterproof coefficient
    IP65
  • Battery operating temperature range
    -40℃-80℃
  • Net Weight
    57KG
  • Package
  • Outer packing size

    Solar Panel Size：1490*685*65mm

    Battery Size: 320*170*120±2mm

    Cabinet Size: 500*400*200mm

    Triangle bracket: 682*520*620mm

    Cross arm: 170*620*720mm

    Camera Arm: 530*140*140mm
