Model: CS8040

80W 40AH 576Wh Solar System

features

  • CCTV Solar Power Supply 80W40AH 576WH Solution
  • Solar panel: 80W monocrystalline silicon solar panel
  • Battery: 45AH12.8V LifePO4 Battery, total: 576WH
  • MPPT Solar Controller, 3*DC12V Output Port

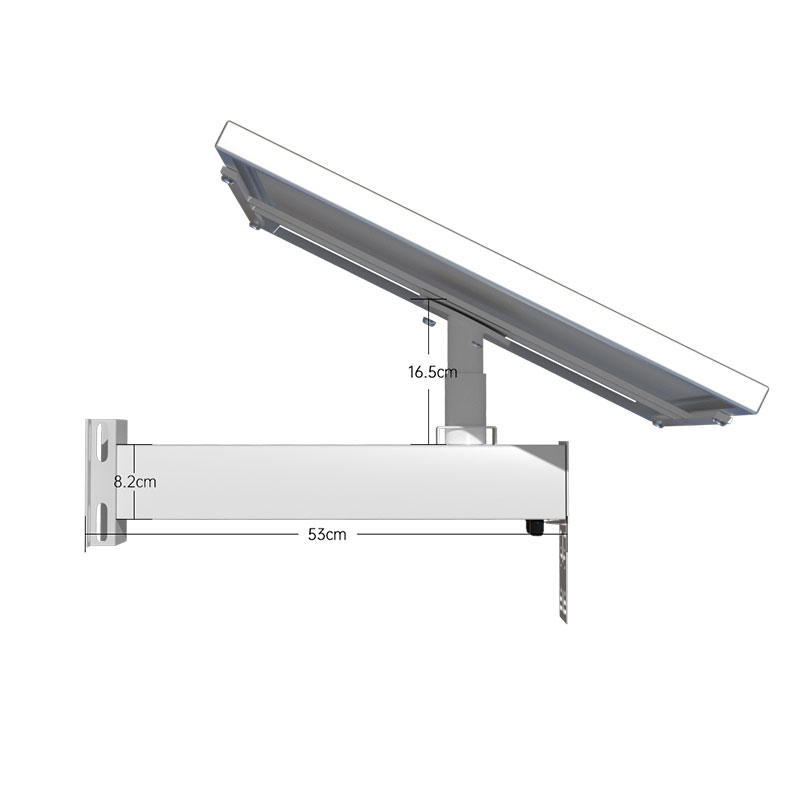

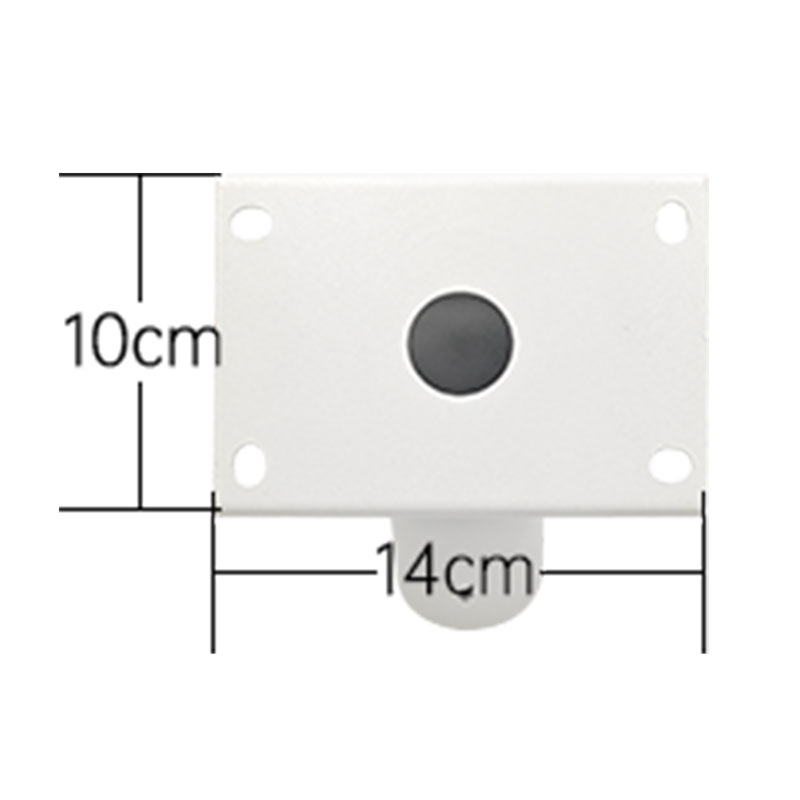

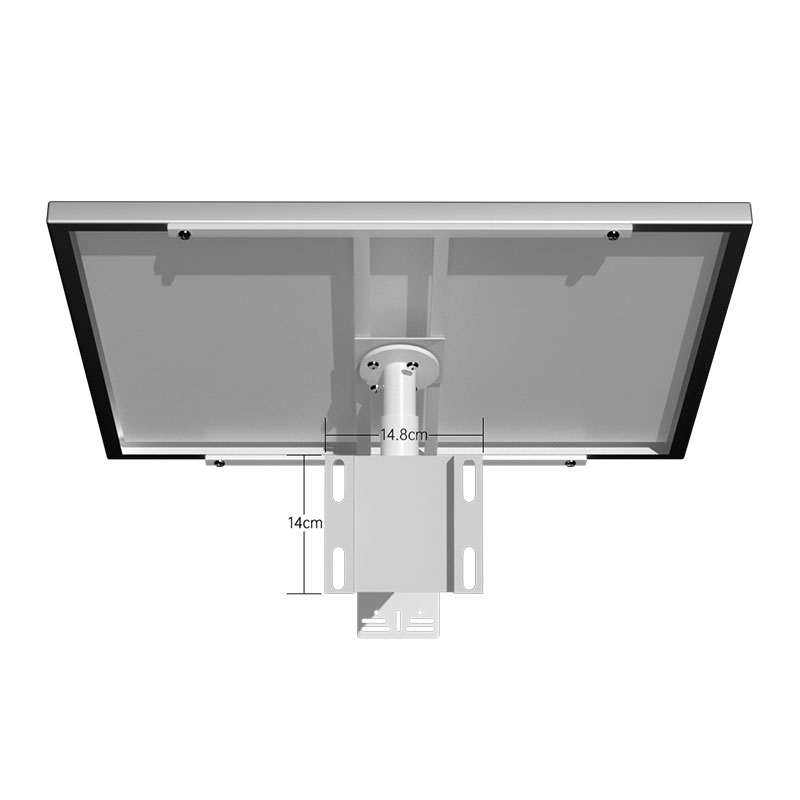

  • Installation Bracket for Solar Panel and Battery
  • 3*DC12V OUT

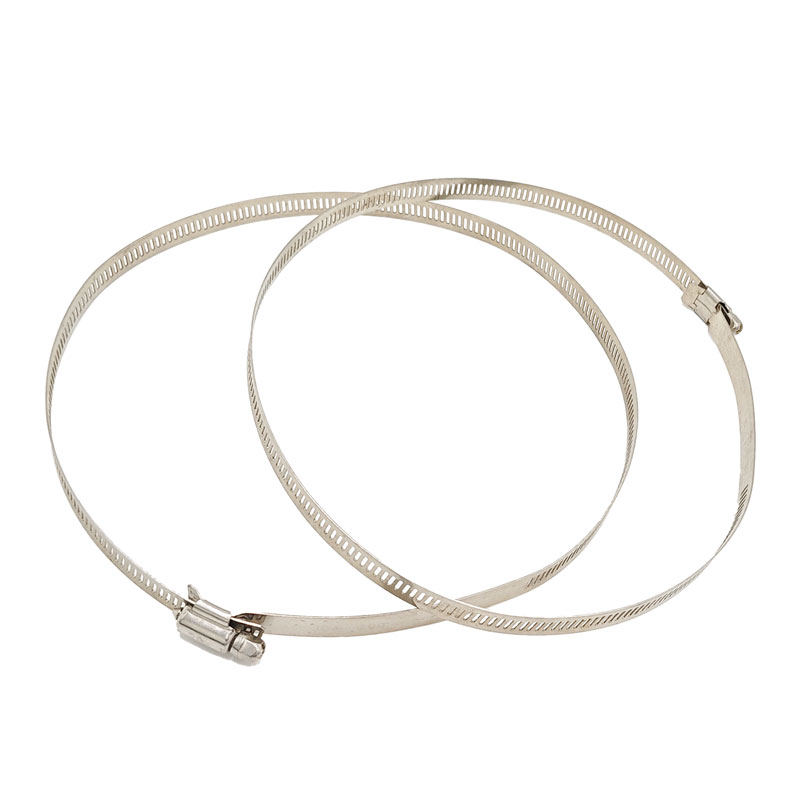

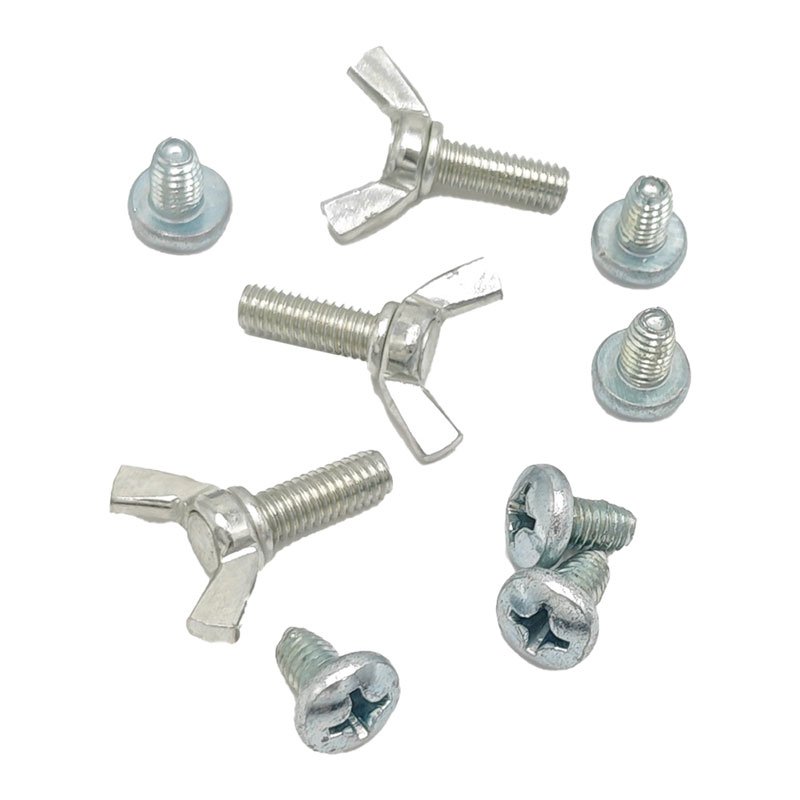

  • Other accessories: Battery Mount, Screws, DC Cable, etc
  • Optional Selection: RS485
Catalog:
Send Inquiry By Emali: [email protected]

Factory price

global shipping

customer service

quality assurance

  • Solar Panel Specification
  • Model
    CS8040 (80W40AH12.8V)
  • STC peak power
    80W (single piece)
  • Module packaging
    Tempered glass/EVA/cell/EVA backplane
  • Solar silicon crystal
    Mono-crystalline silicon
  • Crystalline silicon characteristics
    High efficiency of strong light conversion
  • Cell size and quantity
    210*52.5/36
  • Maximum output power
    80W
  • Maximum operating voltage
    21.1V
  • Maximum operating current
    4.10A
  • Open circuit voltage
    24.0V
  • Short circuit current
    4.59A
  • Tolerance
    3%
  • Maximum system open circuit voltage
    1000V
  • Solar Panel Dimensions
    670mm*700mm*25mm
  • Product weight
    3.415KG
  • Operating temperature range
    -40~85℃
  • Relative humidity
    <90%
  • Frame thickness
    0.88MM
  • Frame
    Anodized aluminum alloy
  • Battery Specification
  • Solution
    MPPT (input maximum power tracking algorithm), constant voltage output,
  • Battery capacity
    12.8V/30AH (384WH)
  • Charging indication
    LED status indicator
  • Input interface
    Photovoltaic aviation plug
  • Output interface
    DC5.5mm diameter standard male plug, 2-way output
  • Output voltage
    12V±50mV
  • Output current
    ≤3A±50mA (total of two outputs)
  • Discharge utilization
    ≤90%
  • Operating temperature

    Charging: 0~45℃

    Discharging: -10~55℃ (accuracy: ±1℃)

  • Over-current protection
    >4A (over-current protection for more than 3 seconds, green light flashes)
  • Overcharge and over-discharge protection

    Over-discharge protection: <10V;

    Over-charge protection: >14.6V (accuracy: ±0.1V)

  • Output short circuit protection
    Green light flashes, green light stays on after short circuit is removed
  • RS-485 communication
    Output power, voltage, current and other information according to customer needs
  • Battery heating function
    When photovoltaic input is available, heating starts when temperature is below 0℃, and stops when temperature rises to 8℃
  • Heating power
    Maximum 15W
  • Storage temperature
    -20~35℃
  • Battery case Dimensions
    500mm*98mm*82mm
  • Weight
    ≈2.5kg
  • Product capacity
    20%-30%
  • Battery material
    Lithium iron phosphate/LifePO4 battery
  • Battery Capacity
    512WH, 12.8V/40AH
  • Power on power consumption
    0.5±0.1W (normal temperature, no load when powered on)
  • Waterproof level
    IP65
  • Battery life and charging
  • Power off battery life
    2 years (battery pack has no output after shutdown, power loss is self-discharge of battery cells, about 3%-5%/month)
  • Power on battery life
    About 25 days (normal temperature, no load)
  • Load battery life
    About 3 days (room temperature, no charging, mounted mobile camera sample + sound column measurement)
  • Recharge time (0~100% power)

    Conditions: normal temperature, 60W photovoltaic panel, standard light duration 4~5 hours/day

    Without load: about 1 day

    With load: about 1.2 days

  • All-in-one Package
  • Size
    730mm*520mm*240mm
  • Weight (Include bracket and accessories)
    11.5KG
