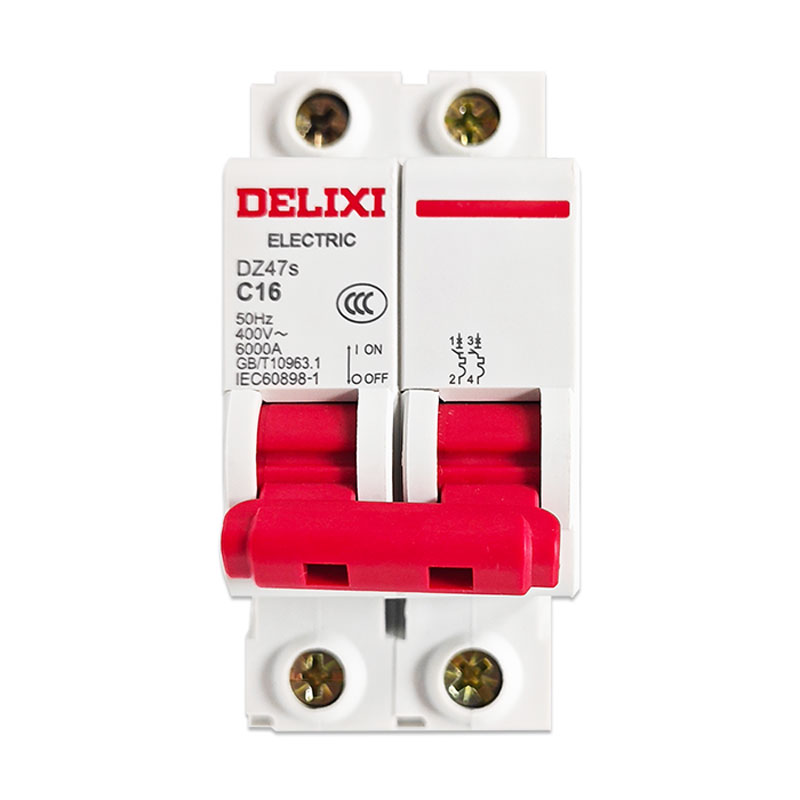

Model: DZ47S
2P16A Air Breaker
features
- 2P16A Air Breaker
- Poles:2P
- Rated Current: 16A
- Rated Voltage: 230/400V AC
- Breaking Capacity: 6kA/10kA
- Tripping Curve: C Curve
- Frequency:50/60Hz
- Mechanical Life:>20,000
- Electrical Life:> 10.000
- Mounting: DlN rail mount
- Application: Suitable for solar, control, distribution, and industrial panels
Catalog: Power Accessories
Factory price
global shipping
customer service
quality assurance
| Model | DELIXI DZ47s-C16 |
|---|---|
| Rated Current (In) | 16A |
| Number of Poles / Voltage | 1P / 1P+N / 230V (Single Pole) |
| Tripping Curve | Type C |
| Breaking Capacity | 6kA, compliant with IEC/EN 60898-1 |
| Frequency | 50 / 60 Hz |
| Protection Performance | Overload protection, short circuit protection, isolation control |
| Operating Temperature | –35°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Installation Height | Up to 2000 m above sea level |
| Protection Level | IP20 |
| Installation | Standard 35 mm DIN rail |
