Model: FAN220

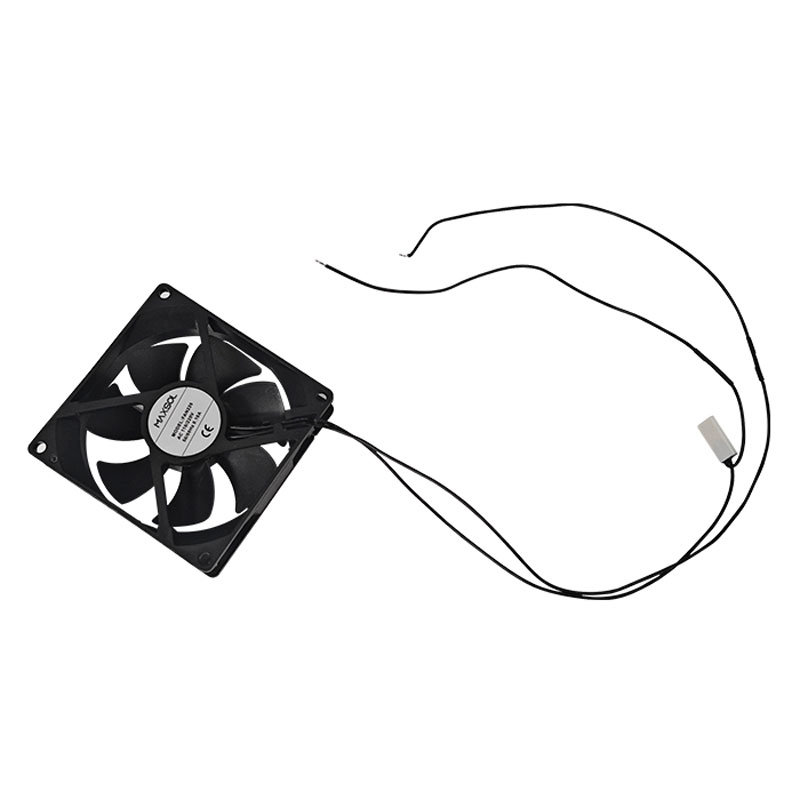

220V Temperature-Controlled Cooling Fan
features
- 220V Temperature-Controlled Cooling Fan
- Dimensions: 92X92X25mm
- Operating voltage range: 110V-220V
- Rated current:0.04A ± 10%
- Rated input power:2.7W ± 10%
- Rated speed :3000RPM ± 10%
- Operating temperature: -10℃~ + 70℃
- Environment humidity :10%(RH)45℃ for 24hours , 98%(RH)45℃ for 24hours
- Acoustic Noise: ≤ 38.05 dBA (Maximum)
Catalog: Power Accessories
Factory price
global shipping
customer service
quality assurance
| Model | FAN220 |
|---|---|
| Bearing Type | Two Ball Bearing |
| Rated Voltage | 220V |
| Operating Voltage Range | 110V – 220V |
| Starting Voltage / Condition | ≤110V, starts when temperature reaches 40℃ |
| Rated Current | 0.04A ±10% |
| Rated Input Power | 2.7W ±10% |
| Rated Speed | 3000 RPM ±10% |
| Maximum Air Flow | ≥58.01 CFM |
| Maximum Static Air Pressure | ≥3.53 mm-H₂O |
| Operating Temperature | -10℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +85℃ |
| Insulation Resistance | ≥10 MΩ at 500V DC (between housing and lead wires) |
| Dielectric Strength | 500 VAC, 1 minute, 1 mA (between housing and lead wires) |
| Acoustic Sound Level | ≤38.05 dBA (Max) |
| Dimensions (L × W × H) | 92 × 92 × 25 mm |
| Weight | 75 g |
