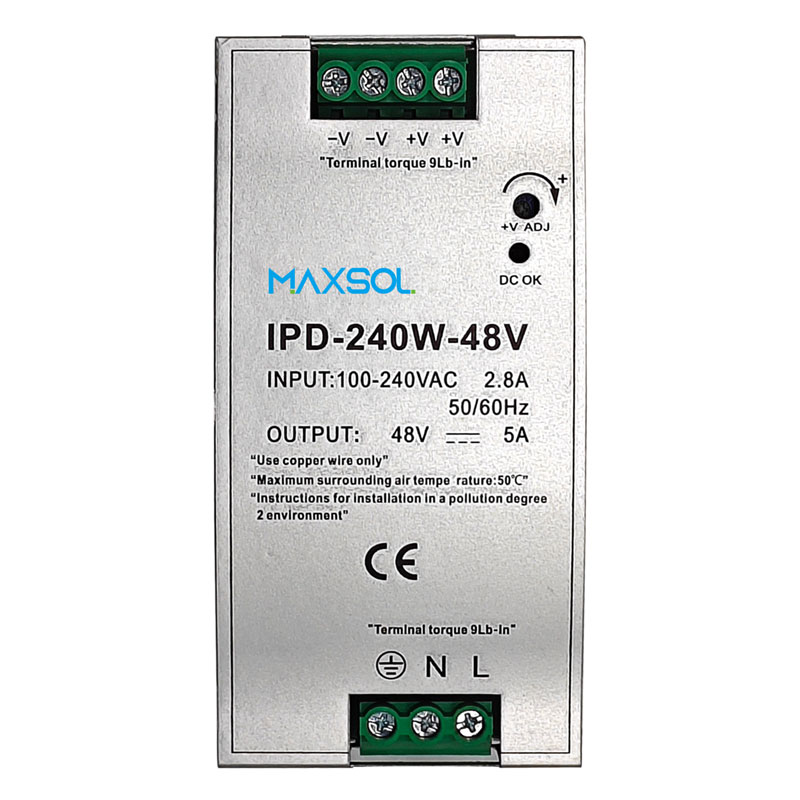

Model: IPD-240W-48V

48V 240W DIN-Rail Power Supply

features

  • DIN-Rail Industrial Power Supply (48V / 240W)
  • Output: 48V DC, 5A (0–5A), 240W
  • Ripple & Noise: ≤250 mVp-p
  • Voltage Adj.: 48–52.8V, Accuracy ±1%
  • Input: 100–240 VAC, 47–63 Hz
  • Input Current: 4A @115V / 2A @230V
  • Efficiency: 87%
  • Protection: OLP / OVP / SCP
  • Size: 63 × 125.2 × 113.5 mm
  • Mounting: DIN Rail
Catalog:
Send Inquiry By Emali: [email protected]

Factory price

global shipping

customer service

quality assurance

  • Output
  • Model
    IPD-240W-48V
  • DC voltage
    48V
  • Rated current
    5A
  • Current range
    0-5A
  • Rated power
    240W
  • RIPPLE & NOISE
    480mV
  • Voltage adjustment range
    47.2~48.8V
  • VOLTAGE TOLERANCE Note.3
    ±2.0％
  • Linear regulation
    ±0.5%
  • Load regulation
    ±1%
  • Start-up time

    ≤1000ms/230VAC (full load)

    ≤2000ms/115VAC (full load)

  • Hold-up time (Typ.)
    30ms/230VAC (full load)
  • Input
  • Voltage range
    175-264VAC
  • Frequency Range (Hz)
    47~63Hz
  • Efficiency（Typ.）
    86%
  • AC current（Typ.）
    1.8A Max 220VAC
  • Inrush current(Typ.)
    Cold start: <50A/230VAC
  • Leakage current
    ＜0.75mA/240VAC
  • Protection
  • Short circuit protection
    Protection Method: Hiccup Mode, Automatic Recovery After Abnormal Removal
  • Overload protection

    110%~150% of Rated Output Power

    Protection Method: Hiccup Mode, Automatic Recovery After Abnormal Removal

  • Protection type
    Shut down O/P voltage,re-power on to recover
  • Condition
  • Working temperature（℃）
    -25～+55℃，20～90%RH(non-condensing)
  • Storage temperature、humidity
    -20～+85℃，10～95％RH
  • Temperature coefficient
    ±0.3‰（ 0 – 50℃ ）
  • Vibration resistance
    10-500Hz, 2g, 10 minutes/cycle, 60 minutes each for X, Y, and Z axes
  • Safety standard
  • Withstand voltage(VAC)
    I/P-O/P:1.5KVAC,I/P-FG:0.5KVAC,OP-FG:0.5KVAC 60S
  • Safety standard Reference
    Designed to EN/UL60950-1 and GB4943 standards
  • Insulation resistance
    I/P-O/P,I/P-FG,O/P-FG: 100M Ohm/500VDC/25℃
  • Package
  • product size
    63*125.2 *113.5(mm)(W*H*D)
  • Weight
    0.54kg
