Model: SBOX2802SFGB-I

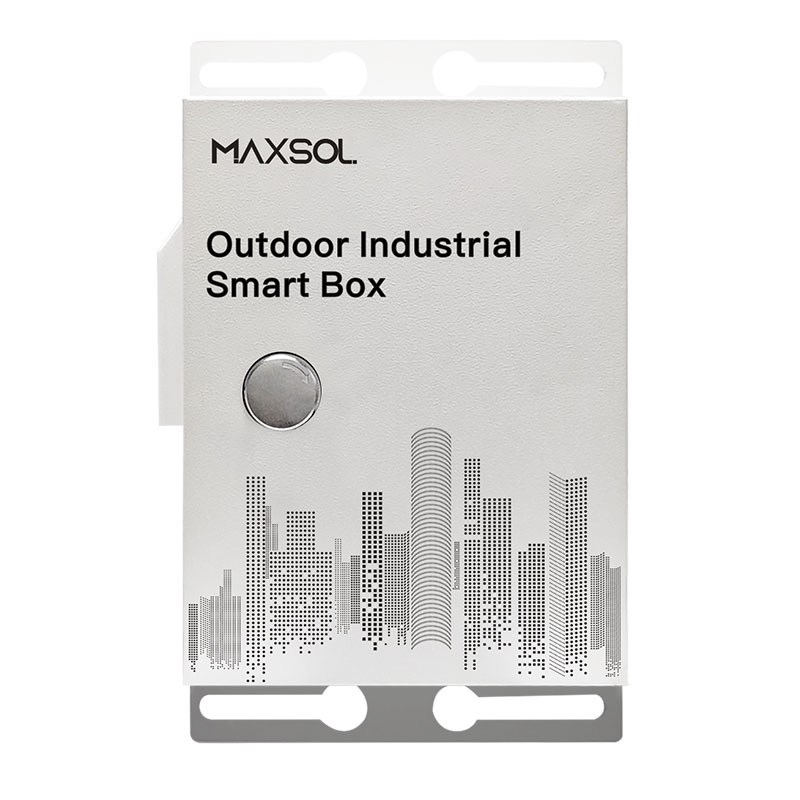

8GE+2GF Managed Industrial Smart Ethernet Box

features

  • 8GE+2GF Managed Industrial PoE Switch Smart Ethernet Box
  • Input voltage: AC100-240V, 50/60Hz
  • Surge Proof:（8KV/6KV)；ESD:(8K/15K)
  • IP protection level:IP55
  • -40℃～75℃ working temperature
  • Include 300W power supply
Catalog:
Send Inquiry By Emali: [email protected]

Factory price

global shipping

customer service

quality assurance

  • Interfaces
  • Model
    SBOX2802SFGB-I
  • Interface

    8*10/100/1000Base-T PoE ports (Data/Power)

    2*100/1000Base-X uplink SFP fiber slot port (Data)

  • Ethernet Port
    Port 1-8 support 10/100/1000Base-TX, auto-sensing, Full/half duplex MDI/MDI-X self-adaption
  • PoE
  • PoE Standard

    IEEE802.3af/at/bt

    (Port1-Port2 Support BT90W Output)

  • SFP Port

    Gigabit SFP optical fiber port, default matching optical modules

    (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)

  • Power Adaptor
    240 W
  • LED Indicators
    PWR，OPT, NMC，ALM
  • Power Interface
    AC Input
  • Optical Cable

    Multimode: 850nm 0 ~ 550M,

    single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.

  • Network Topology
    Support Star topology, Bus topology, Tree Topology, Hybrid topology
  • Input voltage

    AC100-240V, 50/60Hz

    240W DC55V UPS power module built-in

  • Total Power consumption

    ≤10W without PoE (full load)

    ≤250W with PoE (full load)

  • Battery backup
    DC12V/24V/48V Lead-acid/Lithium (not included)
  • Voltage Alarm
    Support
  • Switch Property
  • Switching capacity
    20 G
  • Packet forwarding rate
    14.88 Mpps
  • MAC address table
    8 K
  • Buffer
    4.1 M
  • Forwarding delay
    <10 us
  • MDX/MIDX
    Support
  • Jumbo Frame
    Support 10K Bytes
  • Network Topology

    Ring topology

    Star topology

    Bus topology

    Tree Topology

    Hybrid topology

  • Management

    User Management

    System Log

    Upgrade Firmware

  • Layer 2/3 Switching
  • Configuration File Download
    Support
  • Configuration File Upload
    Support
  • SNMP
    Support
  • WEB Managed
    Support
  • CLI
    Support
  • Telnet/SSH
    Support
  • RMON
    Support
  • Surveillance VLAN
    Support
  • MAC VLAN
    Support
  • Etherchannle/ 802 .3ad
    Support
  • LACP
    Support
  • Interface Speed
    Support
  • Duplex Mode
    Support
  • Flow Control
    Support
  • Jumbo frame
    Support
  • DHCP Client
    Support
  • SNTP Client
    Support
  • Port Statistics
    Support
  • Protected Ports
    Support
  • Ethernet Ring Protection Switching
    Support
  • LLDP
    Support
  • LLDP 802.1 TLV
    Support
  • MSTP / RSTP / STP
    Support
  • STP BPDU Filter
    Support
  • STP BPDU guard
    Support
  • STP Port Fast
    Support
  • IGMP Snooping
    Support
  • MLD Snooping
    Support
  • MVR
    Support
  • IPV4
    Support
  • IPV6
    Support
  • ARP
    Support
  • Loop back Interface
    Support
  • DHCP Server
    Support
  • DNS Server
    Support
  • Environment
  • Operating temperature

    -40℃~+75℃

    The device is tested for 4 hours at temperatures in 85℃

  • Storage temperature
    -40℃~+85℃
  • Relative humidity
    5%~95% non-condensing
  • Thermal methods

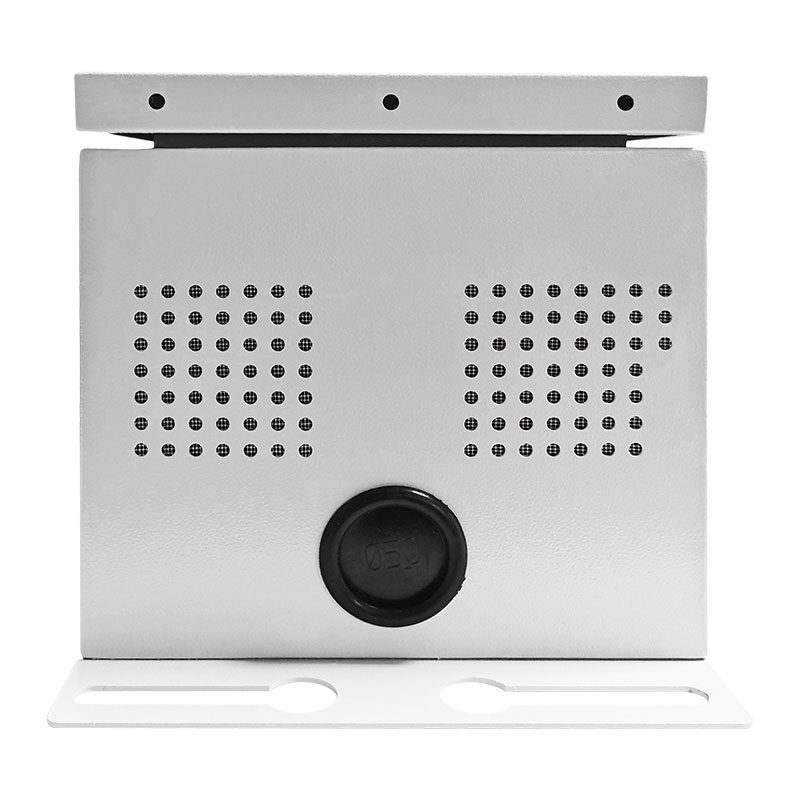

    Auto Fans Cooling
  • MTBF
    100,000 hours
  • Cabinet Description
  • Product size
    500(H)*380(W)*220(D)
  • Installation Method

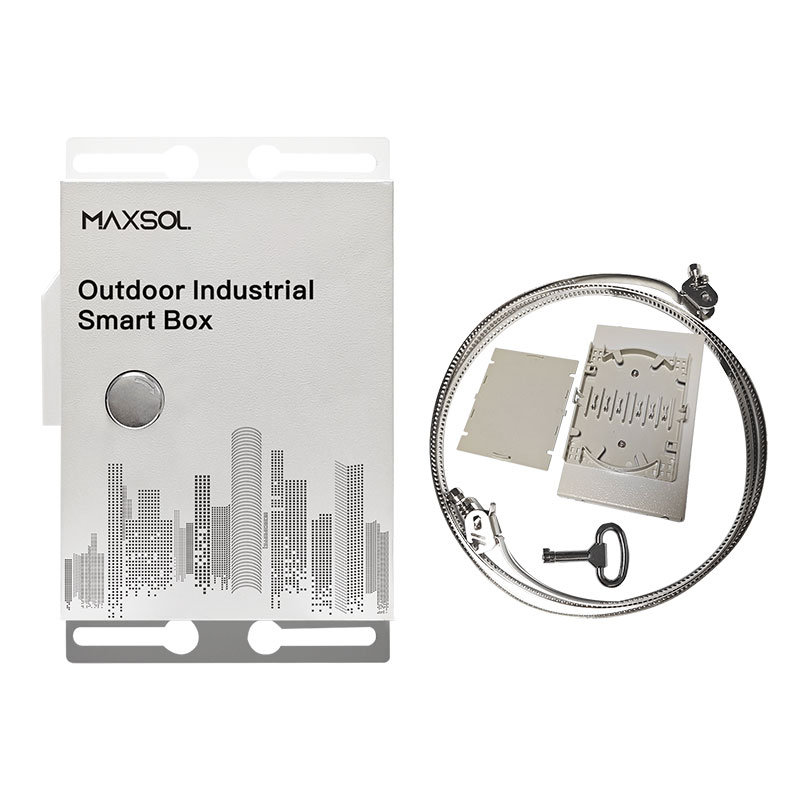

    Wall Mounting/Pole Mounting
  • EMC & Ingress Protection
  • IP Level
    IP55
  • Surge protection of Power
    IEC 61000-4-5 Level X（8KV/6KV）
  • Surge protection of Ethernet port
    IEC 61000-4-5 Level X（8KV/6KV）
  • RS
    IEC 61000-4-3 Level 3（10V/m）
  • EFI
    IEC 61000-4-4 Level 3（1V/2V）
  • CS
    IEC 61000-4-6 Level 3（10V/m）
  • PFMF
    IEC 61000-4-8 Level 4（30A/m）
  • DIP
    IEC 61000-4-11 Level 3 （10V）
  • ESD
    IEC 61000-4-2 Level 4（8K/15K）
