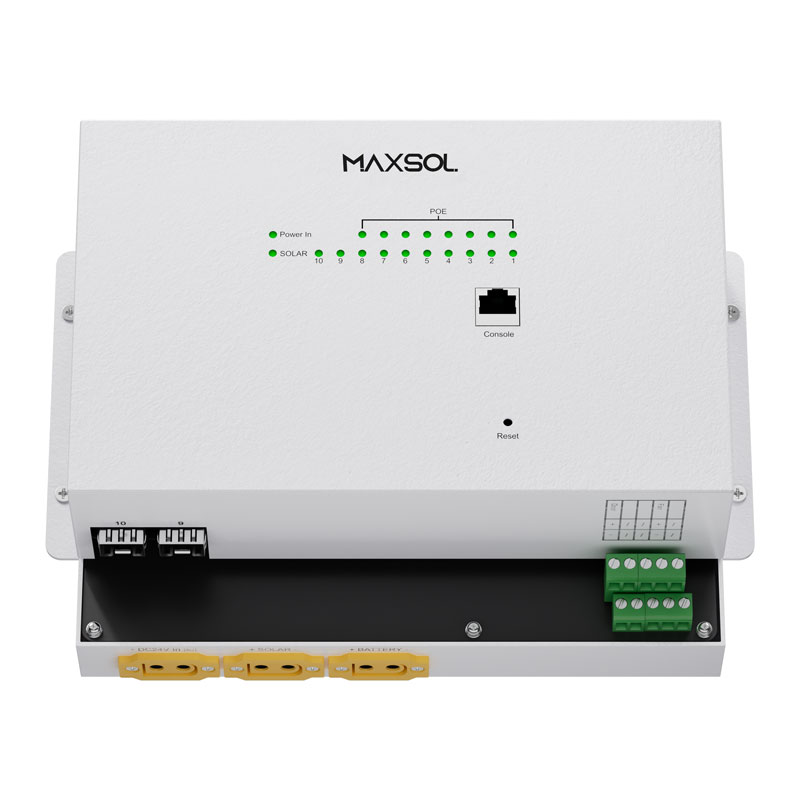

8GE + 2GF Managed Solar Industrial PoE Switch

SIPM-8G2F-BT90

Combines solar power, IoT, communication, PoE, and intelligent O&M technologies into one system for simplified installation.

Zero environmental pollution with reduced reliance on traditional energy sources.

Proactive Fault Prediction (sets thresholds and preemptively identifies potential failures before reaching critical values)

Real-Time Incident Handling

Post-Event Analysis to improve equipment availability and reduce long-term operational costs

Intelligent Temperature Control: Auto-activates cooling fans based on preset parameters

Real-Time Monitoring: Displays temperature, humidity, and door status for enhanced security

Supports intelligent charging control

Supports intelligent Discharging control

Supports Reverse Polarity Protection

Overcharge Protection: Prevents battery damage from excessive charging

Over-discharge Protection: Avoids deep discharge battery failure

Low-Temp Charging Protection: Suspends charging when battery temperature < 0°C

Low-Temp Discharging Protection: Halts discharge when battery temperature < -20°C

High-Temp Charging Protection: Interrupts charging when battery temperature > 70°C

High-Temp Discharging Protection: Stops discharge when battery temperature > 70°C

Jumbo Frame Support: Ensures stable transmission of large data frames

Flow Control: Auto-adjusts transmission rate for optimal performance

VLAN Support: Isolates different services without interference

MAC Whitelist: Enables secure access authentication

Port Traffic Statistics: Provides detailed data usage monitoring

Displays PoE supply voltage/current/power in real-time

Ports 1-2 support 90W BT standard

Ports 3-4 configurable for 24V/48V PoE (remote setting)

Ports 5-8 deliver up to 30W output

Configurable PoE priority & 120W max power budget

PV Panel Monitoring: Real-time voltage/current/power readings

Battery Status Tracking: Daily min/max voltage. Charge/discharge peak current & power. Amp-hour (Ah) charge/discharge totals. Daily energy generation/consumption

System Diagnostics: Operating days count and Over-discharge/Full-charge cycle records

User Authentication: Password-protected access

Version Control: Displays software/hardware versions

Firmware/configuration remote updates

System reboot capability

Factory reset option

NTP clock support

Security surveillance

Forest fire prevention

Smart agriculture

Environmental monitoring

Oil/Gas operations

Power/Water utilities

Geological disaster prevention

Scenic areas

Unattended remote installations

2×1000M SFP ports

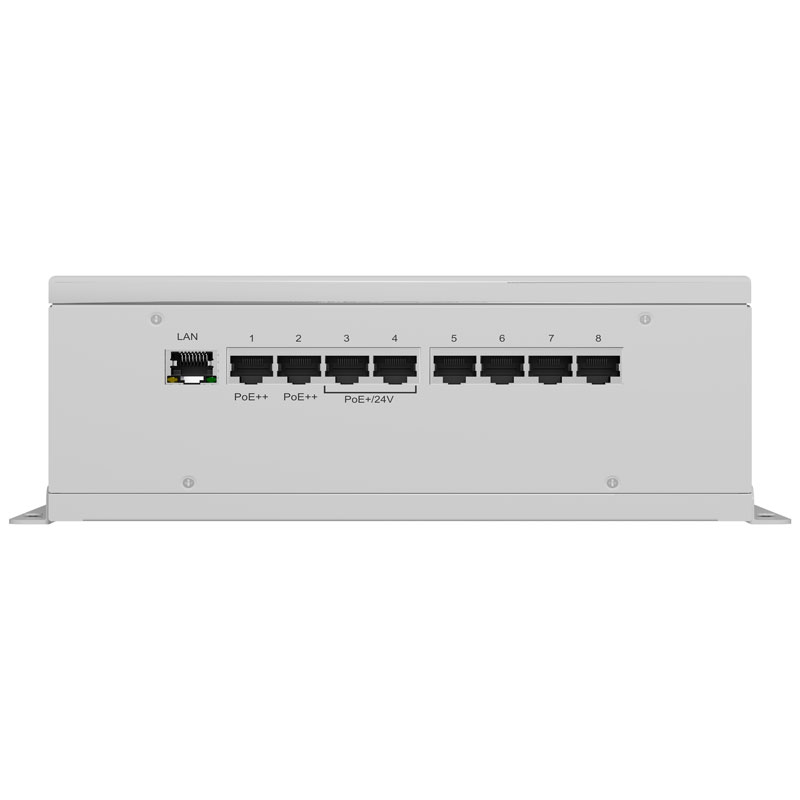

8×10/100/1000M Ethernet ports (with PoE support)

1×RJ45 out-of-band management port

1×RJ45 console port

Serial transparent transmission, MQTT, TCP/IP, UDP, HTTP, etc

DC24V input

DC22~29.2V

IEEE 802.3af/at/bt

Ports 1-8 (Ports 1-2 support BT, Ports 3-4 support 24V PoE)

Smart terminal: 13W

Full load: 140W

A40i, 1.2GHz clock speed, 1GB total memory

Press and hold for 10s to reboot and restore factory settings

163.5mm × 216mm × 88.7mm

1.5kg

Desktop, wall-mounted, or built-in enclosure

IP20

Low: -30°C

High: 70°C
