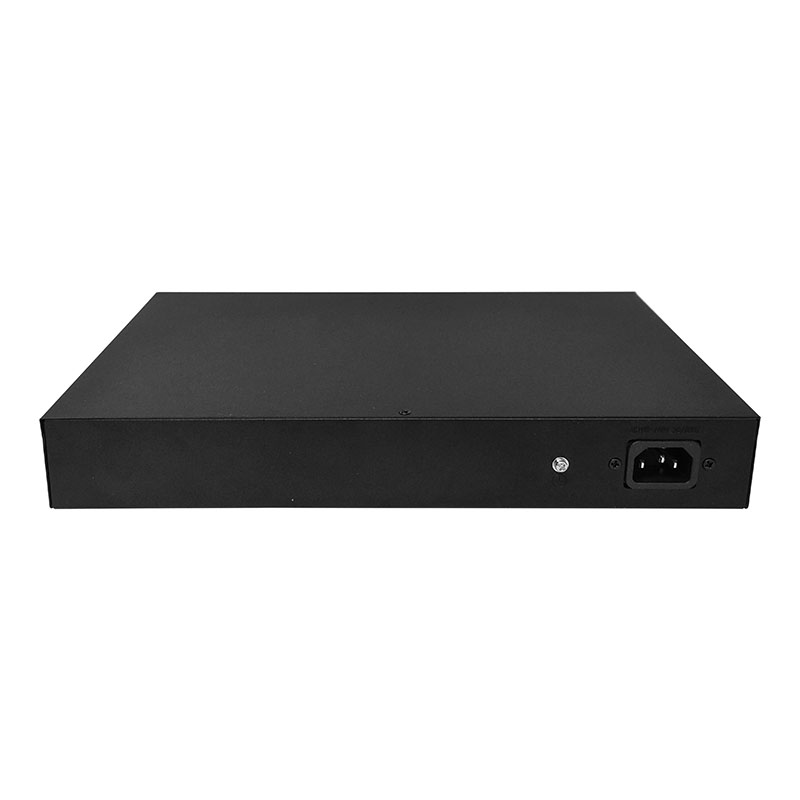

Model: PS12402FE-L

24FE+2GE+1GF Uplink Lite Series 300M 300W Long Range PoE Switch

features

  • 24FE+2GE+1GF Uplink Lite Series 300M Long Range PoE Switch
  • IEEE 802.3af/at compliant, up to 30 W per PoE port
  • Internal power adapter supply 300W
  • Support DIP switch to VLAN / Extend 300M / Watchdog
  • Support AI network self-healing (watchdog) function
  • Support desktop and wall-mounted, and rack-mount installation
  • Plug and Play, no configuration requirements
  • Metal case, internal power supply, excellent heat dissipation performance for long-term stable operation
  • 6KV surge protection function
Catalog:
Send Inquiry By Emali: [email protected]

Datasheet

Download View

Factory price

global shipping

customer service

quality assurance

  • Interfaces
  • Model
    PS12402FE-L
  • Fixed Port

    24*10/100Base-TX PoE ports (Data/Power)

    2*10/100/1000Base-T RJ45 ports (Data)

    1*100/1000Base-X uplink SFP fiber slot (Data)

  • Network Protocol

    IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

    IEEE802.3u 100Base-TX/FX;

    IEEE802.3ab 1000Base-T;

    IEEE802.3z 1000base-X;

    IEEE802.3x.

  • Ethernet Port Feature
    10/100Base-T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive
  • Fiber Port Feature
    Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC)
  • Forwarding Mode
    Store and Forward
  • PoE
  • POE Port
    Port 1-24 support PoE @ IEEE802.3af/at
  • Feature

    With the Dial code switch,

    E: AI Extend 300meters transmission;

    V: Turn on, 1-24 Port support each port Isolation & VLAN;

    Support Watchdog function by default: 1-24 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.

    W: Turn on, 1-24 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.

  • Fan
    Non-Fan, silent working status can satisfy more users with different requirement.
  • PoE Standard
    IEEE802.3af/at
  • Switch Property
  • Switching Capacity
    10.8Gbps (non-blocking)
  • Forwarding Mode
    8.05Mpps
  • MAC address table
    8K
  • Buffer Memory
    4M
  • Twisted Pair Transmission

    10BASE-T: Cat5 UTP (≤300 meter)

    100BASE-TX: Cat5 or later UTP (≤100 meter)

    1000BASE-T: Cat5 or later UTP (≤100 meter)

  • Power Supply Pin
    Default 1/2(+), 3/6(-)
  • MAX / AVERAGE Power Per Port
    30W/15.4W
  • Total PWR / Input Voltage
    300W (100-240V)
  • Power Consumption

    Standby:<5W

    Full load:<300W

  • Physical Characteristics
  • LED Indicator

    Power indicator: PWR (Green)

    Network indicator: 1-24(Link/Act)/ (Green),25-27(Link/Act)/ (Green)

  • Power Supply
    Built in switching power supply, AC100~240V 50-60Hz 4.1A
  • Operation TEMP / Humidity
    -20~+55°C:5%~90% RH non condensing
  • Storage TEMP / Humidity
    -40~+75°C;5%~95% RH non condensing
  • Dimension
    310*205*44mm
  • Net /Gross Weight

    Net: <2.5kg

    Gross: <3kg

  • Installation Method
    desktop type, wall mounted,19-inch 1U cabinet installation
  • Protection

    IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

    IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±6kV

  • Protection Level
    IP30
  • Certification
  • Certification
    CE, FCC, RoHS
  • Package Contents
  • Switch
    1 pcs
  • Power cord
    1 pcs
  • Hanging Ears
    1 pcs
  • Quick installation guide
    1 pcs
